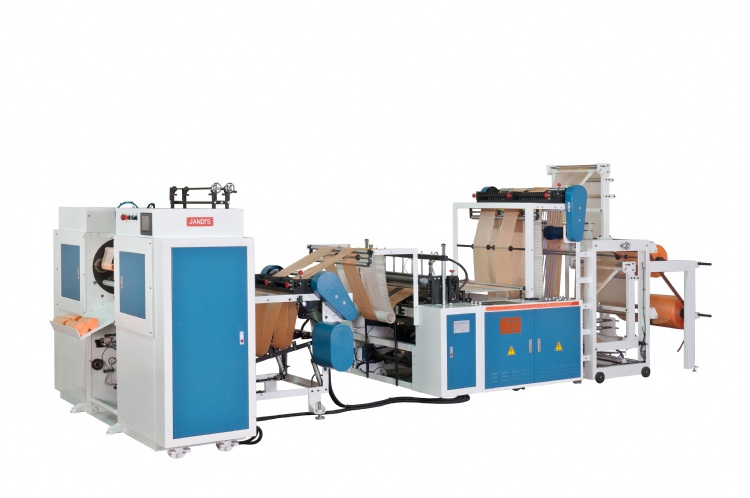

FULL AUTOMATIC STAR-SEAL & FLAT BAG-ON-ROLL MACHINE WITH AUTOMATIC WINDER (CORELESS ROLL)
Model: GF-ST612/SVA
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines
Characteristics
1. 'STAR' Sealing Bag-On-Roll & normal Flat Bottom Sealing Bag-on-Roll
2. Operates in 2 lanes
3. Control by SERVO MOTOR for fast production
4. Easier operations and Maintenance
5. In line with Automatic Rewinding Device for coreless type roll
Specifications
1. Max. Unwinding Film Width : Max. 500mm x 2 lines
2. Max. Rewinding Film Width : Max. 250mm x 2 lines, 500mm x 1 line
3. Rewinding diameter : 150mm
4. In line with Triangle Folding Device : 2 sets
5. Max. total film thickness : 0.2mm
6. Maxi. Bag length : 1,200mm
7. Production Speed : 30 ~ 140 cycles/min/
