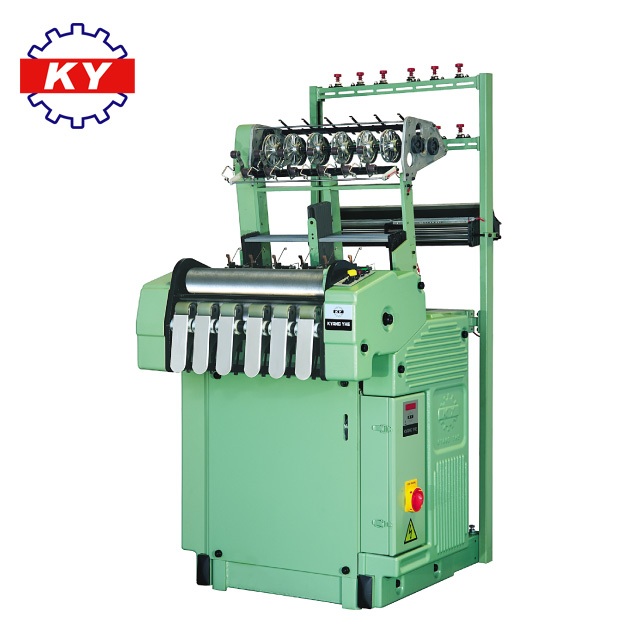

High Speed Automatic Needle Loom
Model: KYF 6/45
Category: Textile, Sewing, Garment Machinery & Industrial Equipments / Textile Machinery / Braiding Machines
Characteristics
The series of KYF weaving machines have the fabric with 2 to 12 lines, which have the full range of species. This kind of weaving machine can be used in different width from 3mm to 100mm, To meet customers' need, we have varies of machines' working width, which can match with the factory and product.
The function of auto-lubrication system and auto-stop motion system can effectively improve the fabric quality. That will save working time and human resource for the makers.
Driving belt use the kind of high torque timing belt, at the same time, the gear collocation variable speed device. Transmission of bottom weft stability, have a large range of fabric field, the products have good quality.
With the same width of the models can be converted each other to different output in number.
The wider machine series adopt dual shedding lever and dual chain link for transmission. It strengthen the axis and transmission structure of gears.
Specifications
Model: KYF6/45
Output: 6pcs
Reed Width: 45mm
Shadding Frame: 16pcs
Chain Link: 48pcs
Power: 1.1HP
Speed: 1,100 RPM
Weft density:3.5-36.7cm
