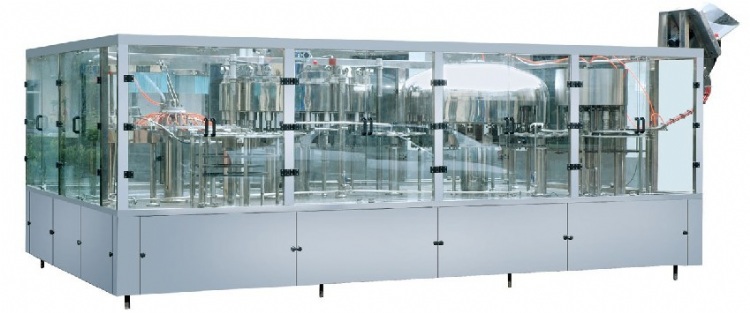

filling machine
Model: RKL18186-40404012
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines
Characteristics
This machine has four functions of washing, fruit dice filling, juice filling and capping. Whole process is automatic. It used for filling fruit dice filling, such as orange juice with grain, pineapple dice, pomelo dice and so on. Fruit dice adopts measuring cup to measure and ensure dice even. It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling, excellent automaticity. It is possible to realize man-machine conversation because of applying touch screen for operation.
Main performance:
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and the bottle shape won’t change as for adopting hanging clamping bottleneck way.
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you only need to change the board related with bottle diameter.
3) Filling adopts measuring cup to measure and ensure dice even.
4) The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping head.
5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.
Specifications
Washing/filling/capping heads:18-18-18-6
productivity:5000-6000
Motor power:5.5
Size(mm)(L*W*H):2800*1720*2200
