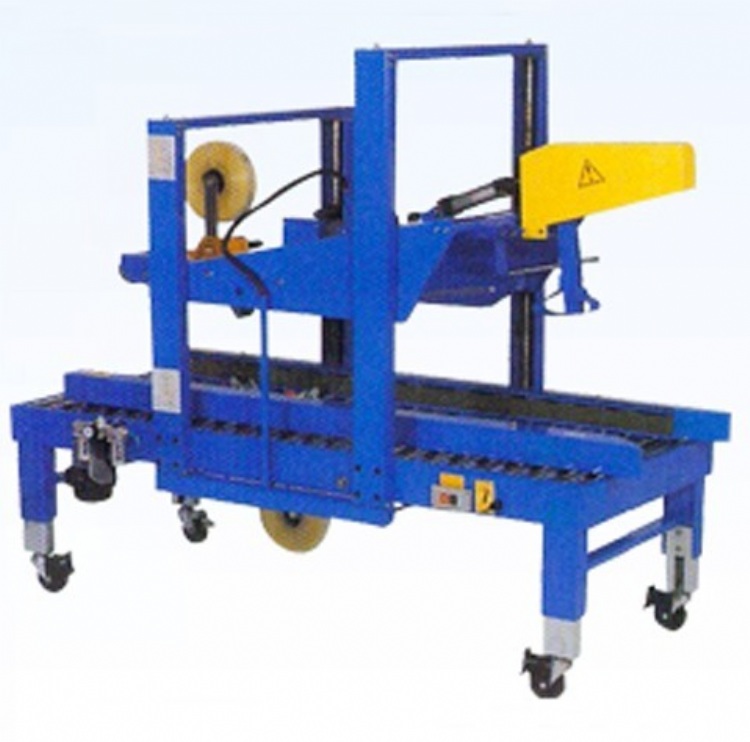

Cartoning Sealing Machine
Model: EXC-308
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / PVC/PE Shrink Film Wrapping Machines
Characteristics
Characteristic
This machine is a auto carton sealer which the operation line looks like“一” type and adopts single structure. It can fold the top of cases automatically.
Designed by traditional method to feed the cartons by drive belt and then to seal it by adhesive tape.
It just taken 1-2 minutes to make adjustment for applicable carton sizes manually.
Widely use scope that suitable for all kinds of paper carton
All structure wares are exact and durable to guarantee the long term perfect performance
To ensure the attaching is better than manual work, faster and higher efficiency.
Specifications
Model：EXC-308
Applicable cantor sizes：L:200-550 W:120∼500 H:110∼500
Height of working table：Min: 570mm Max: 750 (Can be non standard for out of this using scope)
Attaching speed ：1000-1350/ hour (can be faster if make nonstandard machine)
Machine dimension：L:1700 W:840 H:1450
Atmosphere source：Single or 3 phase 220/380V 50/60Hz(can be changed)
Power supply：5kg 、f/c㎡-40nl/min
Suitable adhesives tape：W: 48mm W:60∼75mm L:1000yards(can be changed)
Weight：Net:180kg Gross weight:260kg(include wooden packing)
