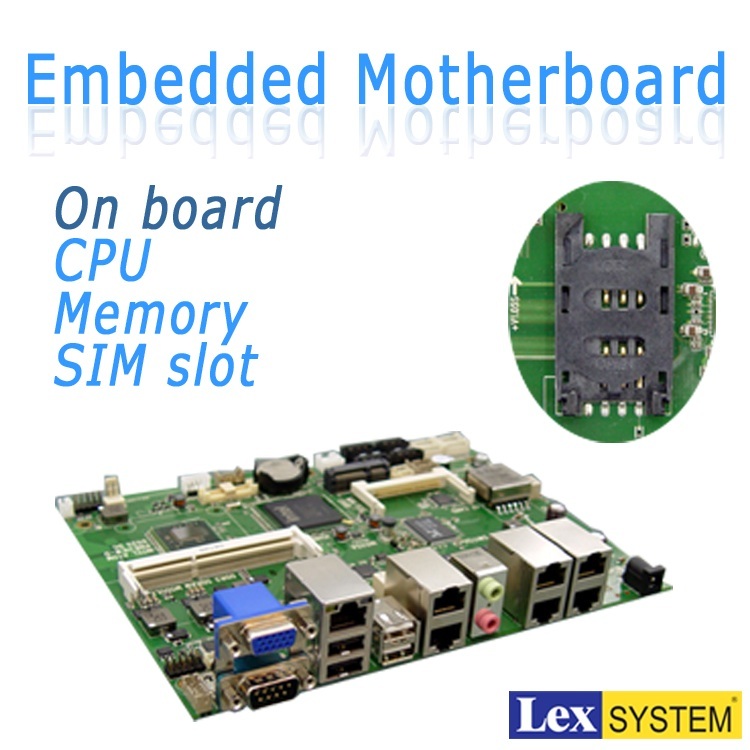

Integrated PoE embedded Motherboard

Model: NI525A

Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems

Online Inquiry

Characteristics

We’ve successfully developed a platform that has integrated two most widely applied functions in Surveillance Industry- the PoE and NVR solutions- NI525A.

NI525A is an intelligent 4-port 802.3af PoE switch solution with latest Intel D525 Atom Dual Core 1.8GHz processor. It has a maximum of 4 GB DDR3 SO-DIMM socket with 3 Giga LAN, 2 SATA ports, 2 Serial ports, 8 USB, on board DC-IN +48V and watch dog timer & digital input/output with various optional choices; such as LVDS and Touch screen function, which made NI525A more flexibl. NI525A is able to support one PCIe mini card socket as expansion interface and one CF card or one 2.5 inch HDD as its storage. It also has an onboard SIM card socket providing 3G wireless capabilities for mobile application.

NI525A Our Twister, a whole Aluminum made chassis, which is the best choice for NI525A. We also have fanless Touch Panel PC which allows you to monitor and control application directly.
