illunis 29MP 超高畫素攝影機
Model: RMV 29050
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics

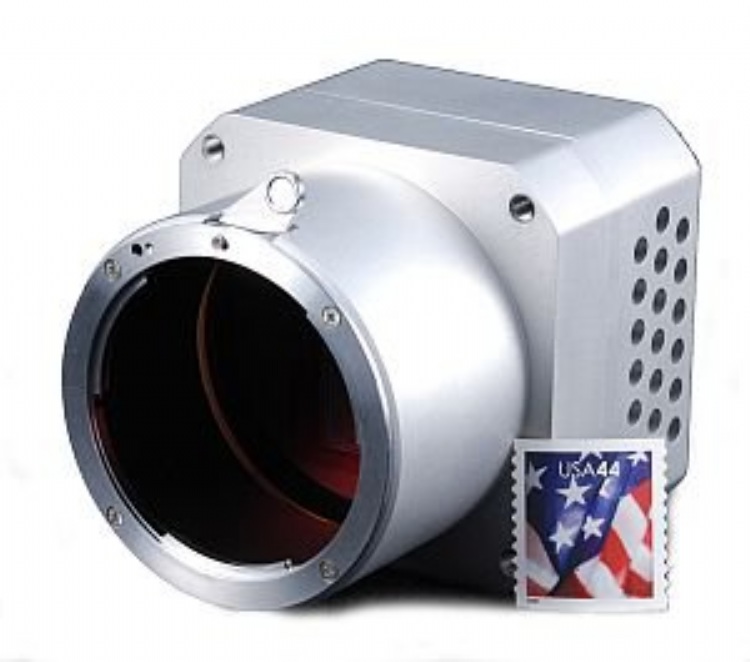

We are pleased to announce the introduction of our RMV-29M, a 29 million pixel camera based on the Kodak™ KAI-29050 image sensor. Using the latest KODAK TRUESENSE 5.5 micron interline CCD sensor, these cameras offer outstanding quality and performance, and have aditional features such as low noise, low smear of -100 dB, blooming suppression of >300x, full 14 bit sampling and 12 bit data path. The RMV-29M is a 29 mega pixel progressive scan imager in a 35mm optical format (43mm diagonal)
Specifications
Active Pixels: 6576 x 4384 Pixel Clock: 30, 40, 48 Mhz Pixel Size: 5.5um x 5.5um Frame Rate: 4.8 FPS (Quad Tap) 2.4 FPS (Dual Tap) 1.2 FPS(Single Tap) Bit Depth: 8, 10 or 12 Dynamic Range: 64dB (typical 70dB) Power: 12VDC - 5.4W @ 30mhz, 6.4W @ 40mHz Interface: Camera Link Base Mode or Gigabit Ethernet Dimensions: Contact us for CAD drawings
