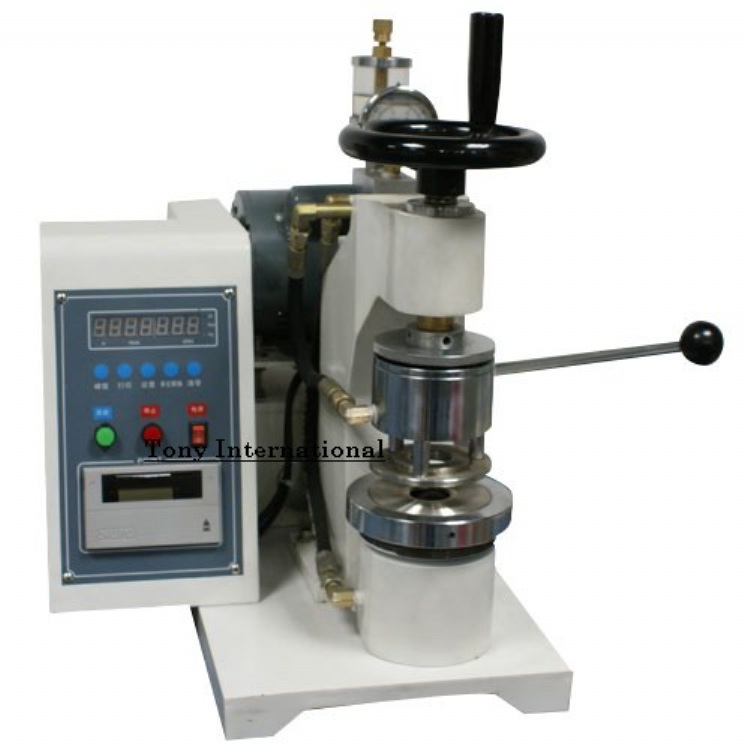

Digital Bursting Strength Test Machine
Model: TNJ-038
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
The bursting strength tester is used for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The GT-7013-ADP type of bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
Specifications
This Bursting Strength Tester Technical Parameters:
capacity(optional) high Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
unit Kpa, psi, kg/cm^2
accuracy ± 0.5%
pressure Range 250~5600kpa
specimen Clamping Force >690kpa
oil 5% Glycerin; 15% Distilled Water
sensing method pressure Transmitter
indicating Method digital
display LCD
material of the Ring stainless steel SUS304
opening in upper clamp 31.5 ± 0.05 mm Diameter
opening in lower clamp 31.5 ± 0.05 mm Diameter
motor Anti-vibration Motor 1/4 HP
operation Method semi-automatic
power supply 1ø, AC220± 10%, 50 Hz; 120W
standard Configuration Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle
standards JIS-L1004, L1018, L1031, K6328, P8131, P8112,ASTM-D2210; TAPPIT403TS-63
ISO2759-2001; GB/T1539
