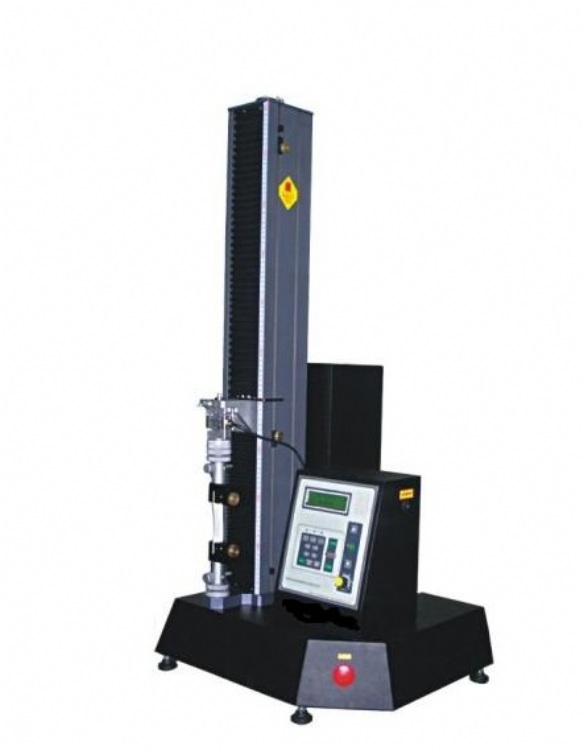

Desktop Tensile Strength Tester
Model: TNJ-028
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
The tensile testing equipment can apply to metal, plastic, paper, color printing package, stickiness tape, case, fabric, foodstuff, cable, electronics test and etc...., can test the physics capability of various material, finished products, semi-manufactured goods. Using different clamp can do resistant pull test, resistant press test, bending test, tearing test etc...
It can be connected PC computer operation which can display and print the number of tests, test value, the maximum value, fracture value, etc.
Specifications
Technical parameters:
capacity 50.100, 200.500 KG
switch unit G, KG, N, LB
load solution 1/50000
load accuracy ± 0.5%
max stroke 1000 mm
test speed 30~300 mm / min
stroke resolution 0.1 mm
data sampling frequency 16 time/second
motor Servo motor (from Taiwan)
