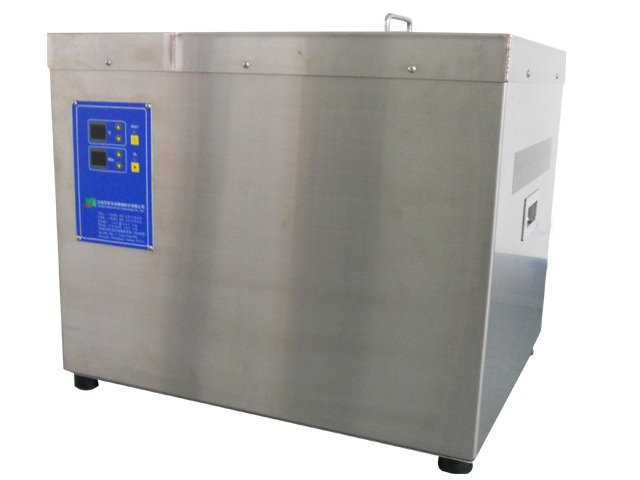

Multi-function Ultrasonic Cleaning Machine
Model: MS-600
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Control Systems
Characteristics
*Less operating process,higher working safty.
*Solvent saving,overall effect,less damage to object surface.
*The newest F.E.T.crystal driving,adjustable output power.
*Unique 4 sides overflow.
Specifications
|
Type |
Desktop |
Hermetically sealed |
Upright |
||||
|
Model |
MS-600 |
MS-1200 |
MS-600A |
MS-1200A |
MS-600H |
MS-1200H |
|
|
Frequency |
28KHz / 40KHz |
||||||
|
Host power |
600W |
1200W |
600W |
1200W |
600W |
1200W |
|
|
Material |
SUS304 |
||||||
|
Inner tank size |
300x400x220 mm |
400x500x400 mm |
400x300x220 mm |
500x400x400 mm |
400x300x220 mm |
500x400x400 mm |
|
|
Outer tank size |
600x500x480 mm |
800x600x690 mm |
480x470x475 mm |
600x630x752 mm |
500x450x800mm |
620x760x850 mm |
|
|
Heater way |
Direct |
Indirect |
Direct |
||||
|
Heater |
1.5 Kw |
3Kw |
1 Kw |
2Kw |
1.5Kw |
3Kw |
|
|
Temperature setting |
Room temperature~90℃ |
||||||
|
Maximum capacity |
26 |
80L |
26 |
80L |
26L |
80L |
|
|
Voltage |
220V/1Ø |
||||||
|
power consumption |
10A |
15A |
7.5A |
15A |
10A |
20A |
|
|
Weight |
35.5Kg |
57Kg |
35.5Kg |
57Kg |
48kg |
63kg |
|
