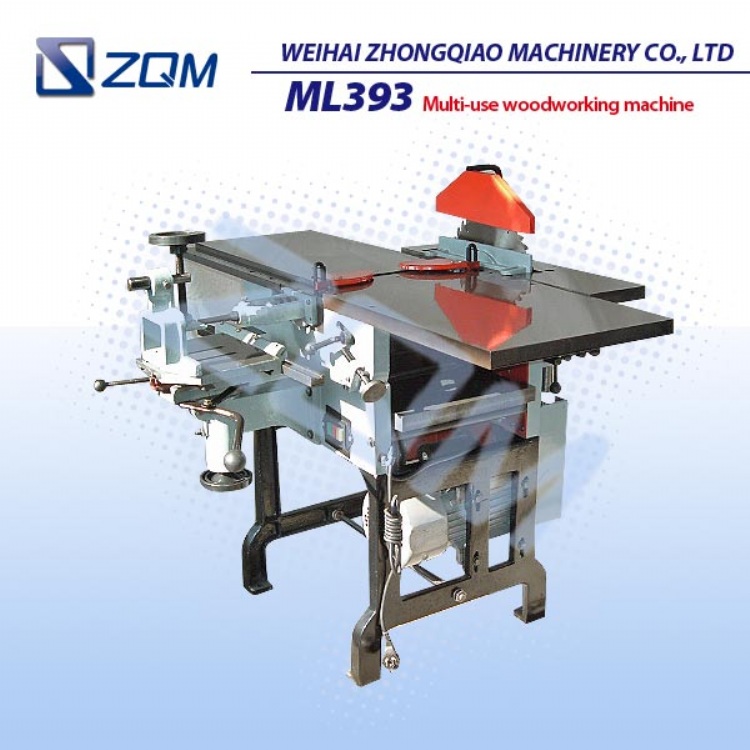

MULIT-USE WOODWORKING MACHINE （ML393）
Model: ML393
Category: Woodworking Machinery Industry / Multi-Purpose Woodworking / 5 In 1 Woodworking Machine
Characteristics
ML393 is the newest VERSATILE WOODWORKING MACHINE which is developed by zqm, it also can be called MULTI-USE WOODWORKING MACHINE and MULTI-FUNCATION WOODWORKING MACHINE. It has tight frame and novel appearance.
The main functions include: Sawing, Planing, Thickness Planing, Slotting, Grinding etc. Besides, we could supply OEM service as your reuirements.
This machine has been sold to South America Market and get well reputation from the customers.
PARAMETER:
Model ML393
Max. planing width(mm) 300
Max. planing thickness(mm) 3
Planing thickness(mm) 6-120
Max. sawing thickness(mm) 85
Max. drilling diameter (mm) 13
Max. tenoning length(mm) 100
Max. mortising depth(mm) 90
Motor power (kw) 1.5
Net/ gross weight (kw) 210/220
Packing dimension(cm) 123 x 88.5 x 81.1
