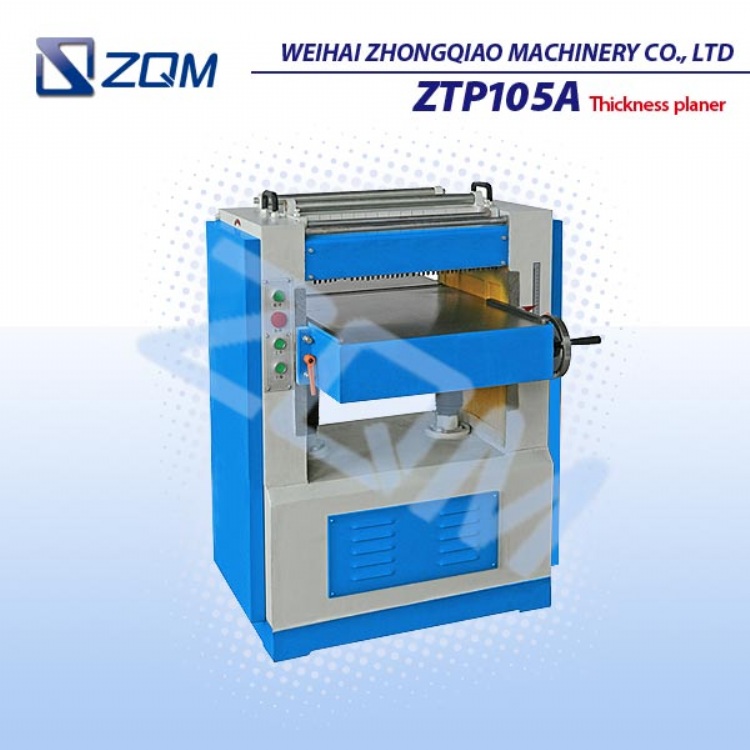

Woodworking thickness planer
Model: ZTP105A
Category: Woodworking Machinery Industry / Woodworking Machinery Component / Woodworking Machinery Component
Characteristics
ZTP105A THICKNESS PLANER is the traditional woodworking machine model which is developed by ZQM, it can make the timber to a uniform thickness. It uses hand wheel and lifting screw to adjust the thickness admittance.
Specifications
Model ZTP105A
Max. working width (mm) 510
Min. working length (mm) 200
Planing thickness arrange (mm) 8-180
Min. planing length (mm) 200
Max. planing depth (mm) 4
Feeding speed (m/min) 7-10
Spindle Speed(rpm) 5350-5500
Motor power (KW) 380v/4kw
Spindle Cutting Diamater(mm) 75
Overall dimension (mm) 785 x 880x 1110
Weight (KGS) 370
