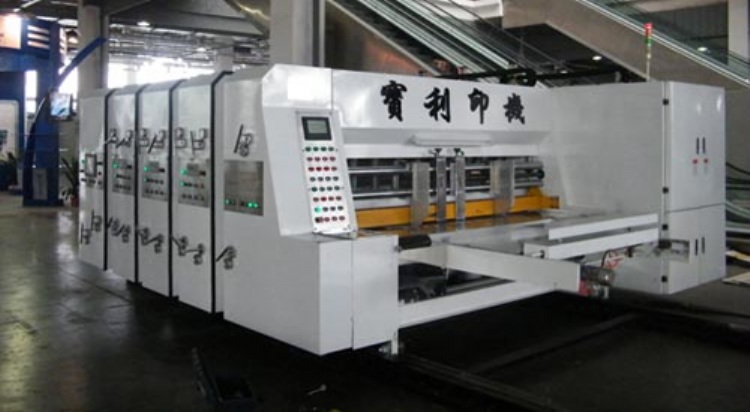

full automatic high speed cardboard printing and slotting machine
Model: 2000
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag, Box and Carton Making Machines
Characteristics
Main Functions and Characteristics
Colour touching screen Computerized control and electrical adjustments
unlimited order store,rapid order changing ,convenient operation
and with humanity
1 Having printing and slotting memory, auto zero adjustment and auto reset.
2 Designed According to the high request and the reliable function,the operation
of the machine is humanization,can accomplish the setting,revision, implement,
replacing and memories function in a shot time,and display with a exact data.
3 All the drive rollers adopted high quality alloy steel materials,hard chromium
plating and the surface be treated by lapping finish.
4 The drive gears adopt high quality alloy steel,after heat treatment and lapping finish.
5 The gears adopt shower type circular lubricating
6 The main drive roller adopt keyless connect,decrease the connection gap,
guarantee the printing presicion.
7 Lubricate oil automatic balance device,keep the equal oil level equal in each unit.
8 All the electrical and electronic components and parts,PLC, Computer ,Inverter
are Siemens Brand from Germany.
9 Customer can chose use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be chosed accord the customer use
10 The side baffle plate of the feeding department and slotting department are adjust by electrically
Specifications
Main Technical parameter
Name of parameter Unit Specification
GYK910*1800 GYK910*2000 GYK1270*2200 GYK1270*2800
Width of inside machine mm 2000 2200 2400 2800
Maximum production speed pieces/min 150 150 150 150
Maximum size of feeding paper mm 910*1800 910*2000 1270*2200 1270*2800
Minimum size of feeding paper mm 280*600 280*600 350*700 350*700
Feeding paper by partition mm 1100*1800 1100*2000 1600*2200 1600*2800
Maximum printing area mm 840*1640 840*1840 1200*2040 1300*2640
Precision of process printing mm ±0.5 ±0.5 ±0.5 ±0.5
Thickness of standard printing plank mm 7.2 7.2 7.2 7.2
Thickness of printing paperboard mm 3-11 3-11 3-11 3-11
Minimum grooving space mm 190*50*190*50 190*50*190*50 190*50*190*50 190*50*190*50
Maximum depth of slot mm 210 340 340 340
Printing roller circle-oriented regulating degree 360°revolving 360°revolving 360°revolving 360°revolving
General power kw 20 20 20 20
Shape size mm 6500*3230*2000 7500*3500*2400 7500*4000*2400 7500*4500*2400
Total weight of machine about kg 16000 18000 19000 25000
