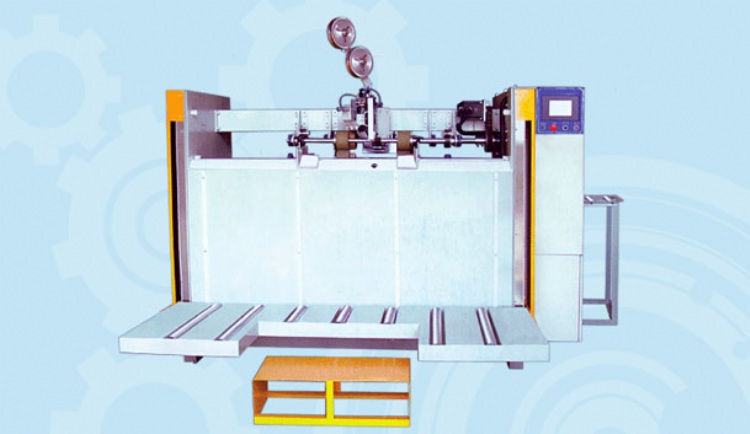

high speed automatic carton stitiching machine
Model: 2800mm
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Automatic Cartoning Machines
Characteristics
Function and Characteristics
One minute quick order change.
Easy operation,no training is necessary.
Single, double supplement stichingare available.
Automatic counter ejector.
Touch screen operate
Nail spain:100mm
400nail/minute
Stitching whatever the carton have cover or not
Nail span can set up directly in the touch screen
Specifications
Technological parameter:
2800mm:
Max(L+W) 2460mm Power 4HP
Min(L+W) 606mm Length 2800mm
Max(L+W) 2460mm Tidth 2600mm
Min(L+W) 606mm Weight 2000kg
Hight of feeder 900mm Stitching Pitch 30-100mm
Speed 400/stitches/min Number Of Stitching 1-99stitches
3000mm:
Max(L+W) 3000mm Power 4HP
Min(L+W) 606mm Length 3000mm
Max(L+W) 3000mm Tidth 2600mm
Min(L+W) 606mm weight 2000kg
Hight of feeder 1000mm Stitching Pitch 30-100mm
Speed 400/stitches/min Number Of Stitching 1-99stitches
