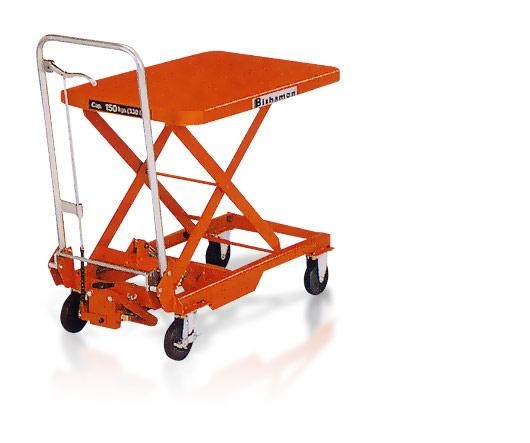

Mobile Lift Table - X Type
Model: BX-15/BX-25/ BX-30/ BX-50/ BX-75/BX-80
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Conveyor Systems
Characteristics
.
Specifications
Model Capacity(kg) Table Size(mm) Table Height(mm) Dimension(mm) Strokes Wheel Weight(kg)
Min Max Size Material
BX-15 150 700x450 213 731 853x450x796 15 100 Rubber 33
BX-25 250 815x500 288 865 1008x500x896 25 100 Rubber 69
BX-30 300 815x500 288 865 1008x500x896 25 100 Rubber 69
BX-50 500 1010x520 438 998 1191x520x900 50 150 Polyurethane 112
BX-75 750 1010x520 438 998 1258x520x960 65 150 Polyurethane 115
BX-80 800 1010x520 438 998 1258x520x960 65 150 Polyurethane 115
