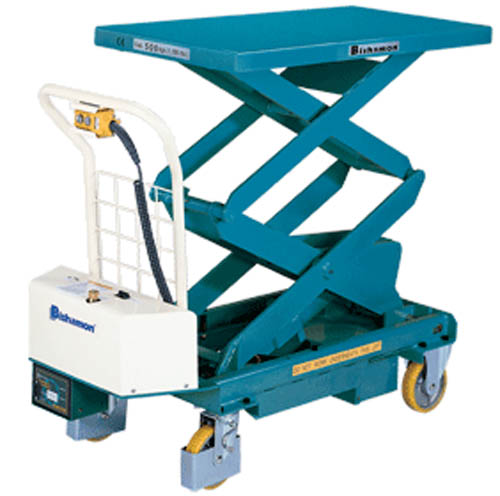

DC Battery Powered Lift Table - 2X type
Model: BX-15WB/BX-30SB/BX-50WB
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Conveyor Systems
Characteristics
.
Specifications
Model Capacity(kg) TableSize(mm) Min Ht(mm) Max Ht(mm) Dim.(mm) Vertical Travel(mm) Motor(DC24V KW) Battery x2 Charge Speed Wheel(mm) Weight(kg)
BX-15WB 150 815x500 380 1,350 1000x500x900 990 0.8 24V26AH 8.5HR 10sec 100 Ø 132
BX-30SB 300 1010x520 445 1,620 1270x520x950 1,175 0.8 24V26AH 8.5HR 12sec 150 Ø 183
BX-50WB 500 1010x520 435 1,605 1270x520x950 1,170 2 24V26AH 8.5HR 17sec 150 Ø 200
