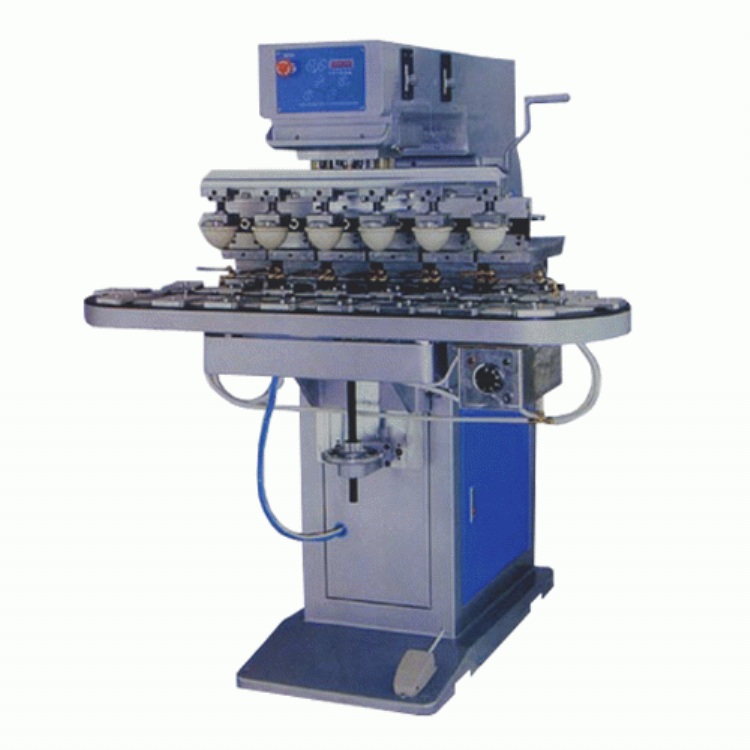

Six Color Pad Printer With Conveyor
Model: M6/C
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Pad Printing Machines
Characteristics
It is a big rotary pad printer, conveying products by rotary type turntable. The products can be overprinted with 6 colors. Running a circle can finish one time overprint. Comparing with shuttle pad printer, it come to a high steps. It can print bigger products with 6 color with fastly and steady. It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift and toys
Specifications
Function introduction:
1. SCM IC complile action program,kinds of printing model option
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. scrapper stroke can be adjusted
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11. Unique desinge of uplit machine body, it is convenient to adjust machine and chang steel board
12. It has the function of forbiding the pad fallen when no air pressure enter into
13. The machine is running fastly,it is steady and low voice
14. Installing auto hot-air system, adjust temperature
Other paremeter:
¡Îsteel plate size: 100*200mm
¡Îprinting speed: 1500pcs/hr
¡Îpower: 220V 50-60HZ 1000W
¡ÎAir pressure: 5-7bar
¡ÎAction model option: fully automatic | semi-automatic | Self-Programming | manual
¡ÎStart-up method:panel | foot switches
¡ÎFixuping turntable method: pneumatic bolt
¡ÎDriving turntable method: pneumatic
¡ÎScraper working style: Pneumatic mechanical valve drives|electronic switch
¡ÎScraper pressure controller: by pressure regulating Valve
¡ÎTransversa distance¡G200MM
¡ÎVertical distance¡G75MM
¡ÎMax.outside size of products: L200* W90-100MM
¡ÎMax.printing area¡G60*170MM
¡ÎCentre distance of ink tray: 127MM
¡ÎRepeat precision: <0.05MM
¡ÎPrinting workstation: 18 PCS
¡ÎFixuping clamp method¡GT-slot table, code pressure compress heavily
¡ÎChoosing the material of clamp: Automobil Putty/ Aluminum/plastic/steel
¡ÎPlastic fastness style: by wooden bolt
