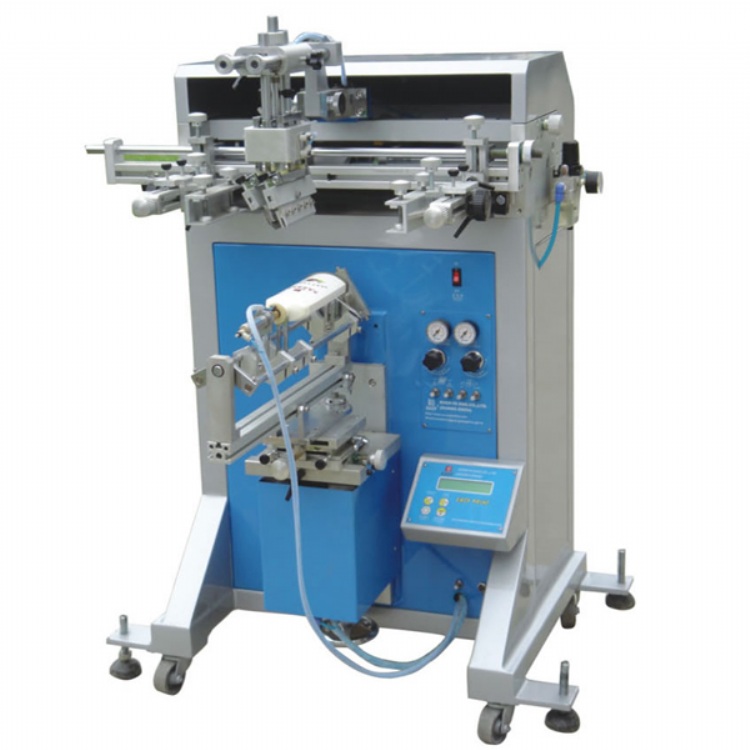

Pneumatic Cylindrical Screen Printer
Model: 400/AB
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Screen Printing Machines
Characteristics
Compare with 400SM, this machine is with double working table which are suitable for precise printing substrates in Cylindrical, Conical Oval and Flat shapes which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc. Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell, lunch box, ceramic mugs, flask etc..
Specifications
Specifications︰
1.Max printing thickness ：200mm
2.Power support：220V 50HZ
3.Air consumption：500 Litre/Min
4.Max product diameter：Φ130mm*250mm;350*250mm
5.Max product arc length：370mm
6.Max printing area：220x320mm
7.Max printing speed：1600Pcs/H r
8.Machine size：1080X850X1280(LxWxH)
9.Machine weight：145kg
10.Gross Weight:187KG
11: Packing Size: 910*1430*960MM
Advantages︰
1. Controlled by microprocessor,easy operation,running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame,low weight and high intensity,adjust convenient.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Pneumatic part of the installation of the German FESTO Parts, Separate adjustment speed
