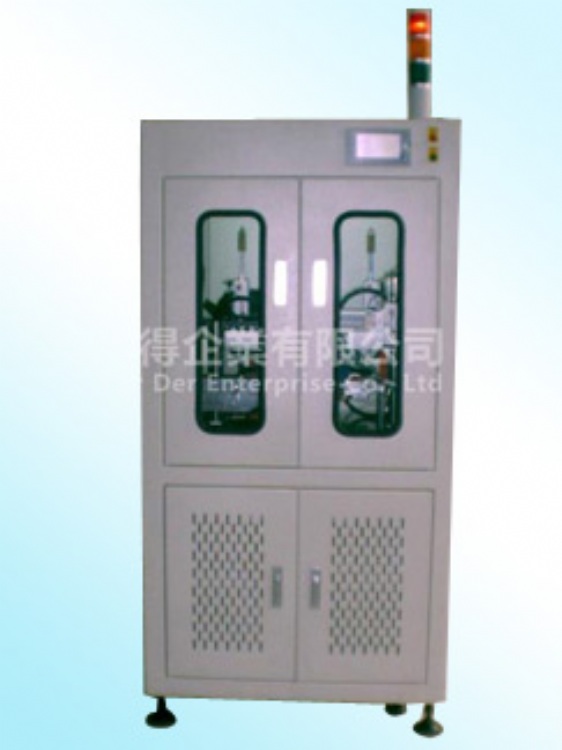

Automatic argon welding welding machine
Model: PWD-35R4
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Welding Equipment
Characteristics
Later used in the plot thick 3 mm thin above;
Mold changing later is simple, do not need professional technicians, is not afraid of the movement of personnel;
Later the interface operation, easy to understand and fault when picture to be automatic popup fault state;
Later have E I Gap pressure adjustment function;
Later production quantity memory be clear at a glance, and had prevent stay control, avoid factitious improper operation;
Later the welding torch mobile using AC servo control, make the welds smoothly uniform;
Later the welding torch ontology using water-cooled, reduce the cost of materials;
Specifications
Welds several: a welding around each word
Type specification: 19-48 mm
Welding the plot thick: 1 ~ 20 mm
Molten pool coagulation time: 0 ~ 9.9 SEC
The welding torch ontology form: water-cooled
The welding torch mobile form: the tight ball screw
Mould operation ways: four groups argon welding mold
Control power consumption: AC220V 500 W
The machine size: 780 W 1000 D 1600 H
The weight: 400 kg
