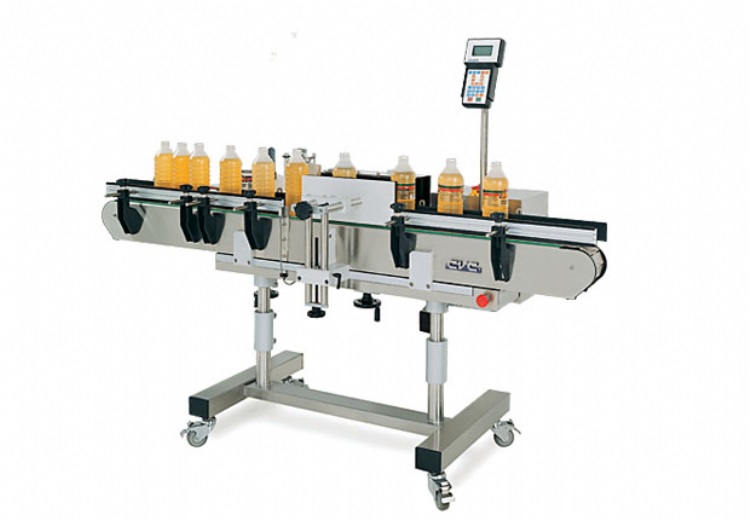

Wrap Labeler
Model: CVC 300
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Marking and Labeling Machines
Characteristics
*Patented Self Set Adjustment utilizes a high frequency encoder with microprocessor controls for extremely easy setup and wrinkle free labeling
*1 Button control to increase or decrease labeling speed. All motors are automatically synchronize to maintain constant labeling accuracy
Four different conveyor lengths are available : 79" (standard), 118", 138", 158"
The product speed listed is the maximum speed (reference). Actual labeling speed will be determined when we factory-test your products. Most products average labeling speeds of 80%-90% of the speed chart.
Standard Features:
Self Set Auto Adjusting Control System
Stainless Steel Frame on lockable casters
Stainless Steel flat bed conveyor with 4" wide table top chain
(Raised Sanitary Bed also Available)
25-Key Hand Held Terminal with LCD Display
Label head with ± 3/64" accuracy and Integrated Wrap Station
Label Sensor for Paper or Opaque Labels
(Clear Label Sensor available as Option)
Prodcut Sensor with Opaque and Clear Bottle Mode
Variable Speed Seperator Wheel
Capacity: up to 200bpm
ISO 9001:2000 Certified
Product Specifications:
Bottle Height: 1" to 12"
Bottle Diameter: 1" to 10" (dependent on conveyor width)
Label Specifications:
Label Width/Height: 3/2" to 8 3/2" (depedent on Labeling Head type A~E)
Label Length: 3/2" tp 10"
Label Roll: max 14" outside diameter with 3" core
Label Head Dispense Speed: Maximum 32 Meters/Min
Machine Specifications:
Conveyor Width: Standard 4", available in 4", 6"
Conveyor Length: Standard 79", available in 98"
Air/Electrical Requirements:
Power: 110V, Single Phase, 6 AMP (208V Available on Request)
Air: 10cc/Printing Time (only required when using Hot Stamp or Thermal Encoder)
Available Options:
Printing:
Hot Stamp (Lot/Date Coding)
Print Area: 2¾(70mm)W x 2½"(65mm)H
Type Sizes: 1.5mm, 2.0mm, or 2.5mm
Chase Size: 6 Lines of 13-22 Characters each
Low Ribbon Sensor
Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
Assemblies
Adjustable Tilt for Tapered Bottles
Feed Screw
Loading and Collecting Turn Tables
Infeed and Outfeed Conveyor Extensions
Custom Wrap Belts
Clear Label Sensor
Low Label (Factory Installed Only)
