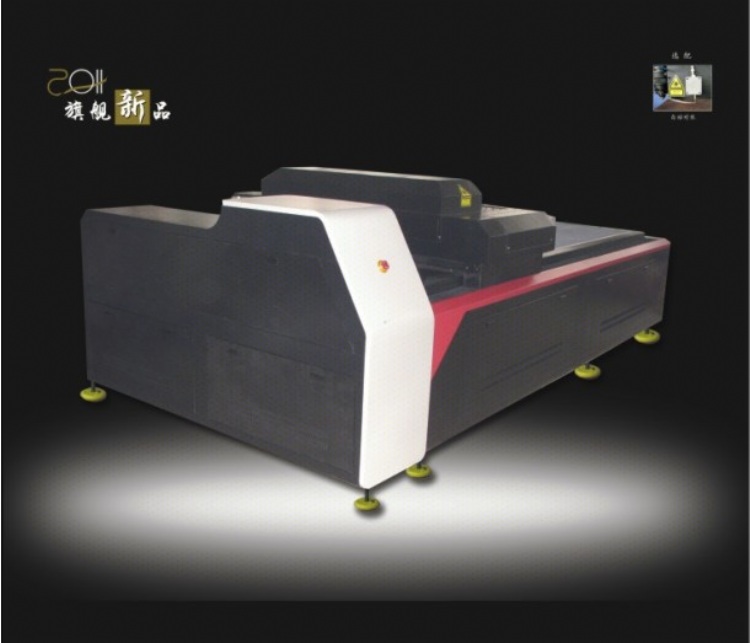

Wood veneer laser cutting machine
Model: JMSCJG-130250DTCO2
Category: Machine Tools / Tools, Cutters, Mold & Dies / Combination-Type Tools, Tool Cabinets, and Carriages
Characteristics
Wood veneer laser cutting machine
Product feature:
1,Adopts precise screw lead driving system and metal girder welding structure
2,it enjoys large area, high-speed, high-precision cutting result
3,Free of gas charging and maintenance and lower cost.
4,High precision CO2 laser cutting machine
Advantages:
1)high precision, fast speed
2)Laser tube maintenance, low cost.
3)Can cut metal sheet and non metal thick plate
Specifications
Main technical parameters:
Laser type CO2 RF metal laser tube
Laser power 400W
Cutting area 1300mm*2500mm
Cutting table Strip panel working table
Cutting(no-load)speed 0-30000mm/min
Repeating location 0.1mm
Moving system Servo moving system, LCDdisplay CNC control, ball bearing
screw lead system
Cooling system circulating water ,10KW constant water chiller
Power supply AC220V5% / 50/60HZ
Format support AI,BMP,PLT,DXF,DST etc
Standard collocation Mini air compressor,automatic control high pressure blower valve
