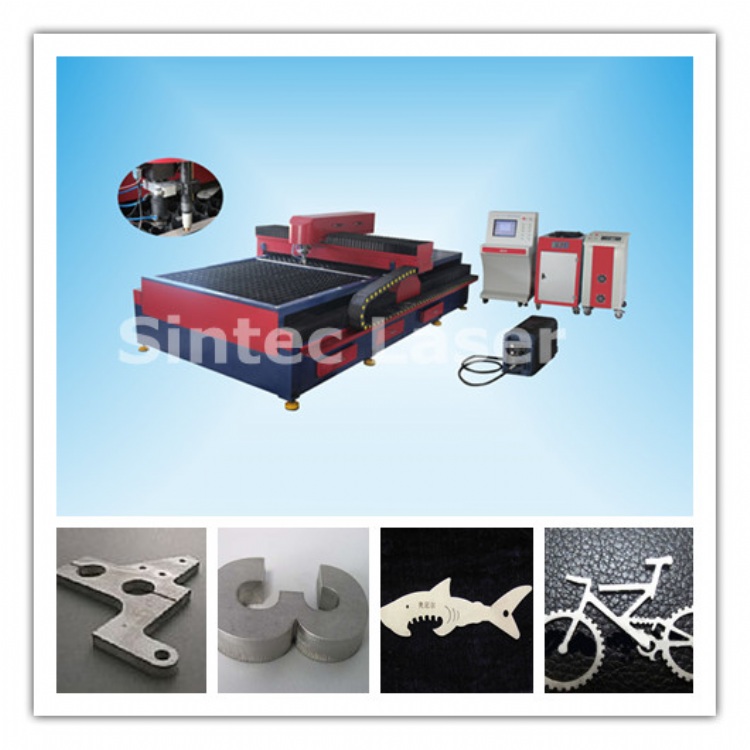

Nd:YAG Laser Cutting Machine with Plasma Cutting
Model: C-YAG-500P-3000x1500
Category: Machine Tools / Gear Cutting Machines / Gear Cutting Machines
Characteristics
Based on 500W Nd:YAG laser cutting machine, plasma cutting is added. In general , the laser is used for cutting the steel with the thickness of 6mm or less and the plasma is used for cutting the steel with the thickness of 6 to 20mm.
Technical data:
The specifications of the laser is same as the specifications of C-YAG-500-3000x1500. The specifications of the plasma cutting are as follows:
Model C-YAG-500P-3000x1500 or
C-YAG-500P-1250x1250
Cutting field 3000x1500mm or 1250x1250mm
Thickness of cut material 0.2-25mm
20mm
(mild steel)12mm (stainless steel)
Operation current 10-100A
Cutting speed 1905mm/min at thickness12mm
Maximum cutting speed 4500mm/min
Requirement power input 380V/50Hz/100A
Position accuracy <0.08mm/1000mm
Repeatability <0.2mm
Weight of power supply 28.6kg
Input power 15.4kW
Maximum voltage 380V
Trigger High voltage & low frequency
Your attention, please!
We are not only can supply you the whole machinery as above , but also can cooperate with you at a OEM style. What's more, we can provide you all the key components and systems separately;
Any inquires are welcome!
