co2 laser engraver for non-metal
Model: VLS2.30
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Industrial Instruments & Equipment
Characteristics
Product Features:

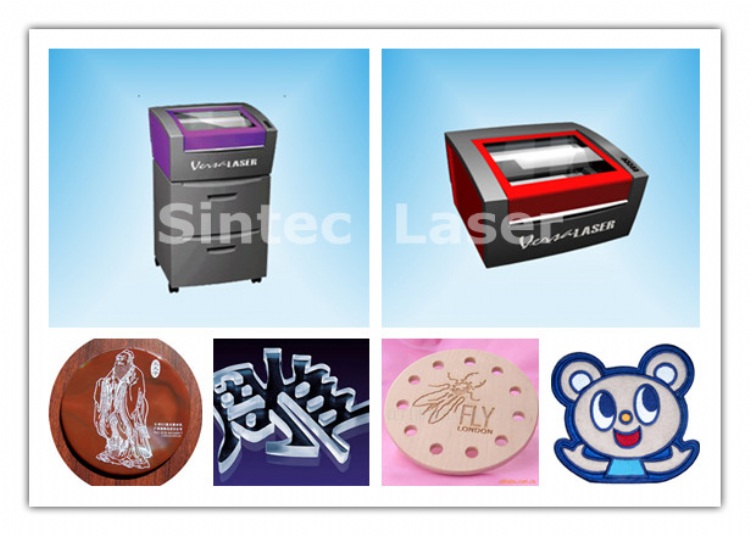

This series is a compact type engraving & cutting machine, even more like a desktop copier, it has 2 kinds of engraving areas with 16 inches and 24 inches. Maximum power of the laser device is 50W. has Auto focus and red light pointing function.
Main Application:
Widely used in the fields of electronic industry, automobile industry, medical products, hardware, household electric appliance, commodity, aeronautical industry, certificate cards, jewelry processing, instrumentation, advertising plate and so on. It can deal with most of the non-metal materials, including: fabric, leather, cowhide, paper,, plastic,rubber glass, ceramic, nature or artificial stone ect.
Technical Data:
Model VLS2.30 VLS3.50
Working Area 16” x 12” 24” x 12”
Table size 18.75” x 14.5” 24” x 12”
Maximum dimension of working pieces 18.75”Wx14.5”Hx4”D 26.75”Wx14.5”Hx4”D
Overall Dimension With base:26”Wx44”Hx25”D
Without base:26”Wx14.5”Hx25”D With base: 34”Wx44”Hx25”D
Without base: 34”Wx14.5”Hx25”D
Laser power 10, 25 or 30W 10, 25, 30, 35, 40, 45 or 50W
Weight 85-92 lbs. (39-42 kg) 110-123 lbs. (50-56 kg)
User Interface 5 button keypad 5 button keypad
Control System/Connection Method Windows XP/ Vista; USB 2.0* Windows XP/Vista; USB 2.0*
Working Voltage 110-220V/5A; 50/60Hz 110-220V/10A; 50/60Hz
Exhaust System One 3 inches port One 3 inches port
Optional items 1. Honeycomb working table
2. Air compressor with computer controlled.
3. Rotary fixture.
High laser power and high laser density focus system
Focus lens with 1.5” or 2” focus distance. 1. Honeycomb working table
2. Air compressor with computer controlled.
3. Rotary fixture.
High laser power and high laser density focus system
Focus lens with 1.5” or 2” focus distance.
Your attention, please!
We are not only can supply you the whole machinery as above , but also can cooperate with you at a OEM style. What’s more, we can provide you all the key components and systems separately;
Any inquires are welcome!
