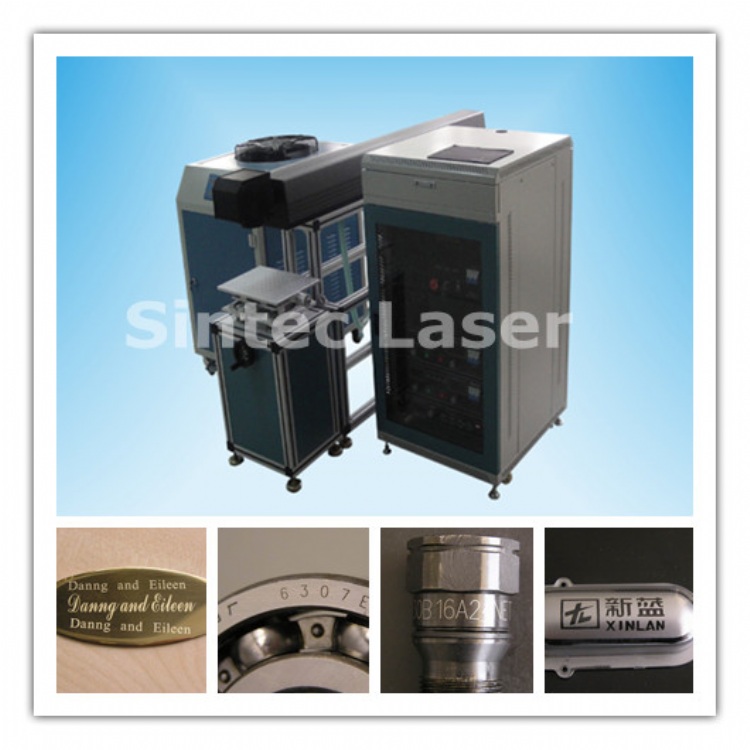

Laser deep engraver
Model: sintec
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Metal Melting & Processing Equipment
Characteristics
Product Features:
1 .The main accessories are imported qualified component, such as Q-switch, pumping lamp, etc. Guarantee the high quality of laser system.
2. Both can engrave by long pulse and high power & short pulse and peak power.
3. Adopt special measure, at the circumstance of equal power consumption, peak power gets up to 300KW, 10 times higher than ordinary lamp-pumped laser machine.
4. High quality beam, high conversion rate of energy.
5. One of the deepest, fastest marking and engraving machine in the world right now, high precision of marking, good effect, and the deepest marking dimension is more than 5mm.
6.The way to engrave: 3-D plane or tridimensional. (Add settled or different depth engraving figure.
7. The system incorporates laser marking and engraving, it's a high speed laser marking machine, and also a deep laser engraving machine. Multipurpose, easy operation, convenient and flexible.
Applied Fields
Can be applied in depth marking and engraving industries of auto car, accessories of auto bike, hardware tools, stainless steel instrument, medical machine, horologe and jewelry, industrial bearing and mould, etc. And can mark and engrave deeply on the material of copper, aluminum and stainless steel.
Technical Parameters
Maximal laser average power 100W
Maximal laser peak power 300KW
Laser wave length 1064nm
Marking cope <110*110mm
Maximal marking depth 5mm(according to different material)
Maximal beeline scan speed 7000mm/s(maximal)
Minimal line width 0.05mm
Minimal character 0.3mm
Repeat Precision ±0.005mm
Power input 380V/50Hz 4.5KW
Your attention, please!
We are not only can supply you the whole machinery as above , but also can cooperate with you at a OEM style. What’s more, we can provide you all the key components and systems separately;
Any inquires are welcome!
