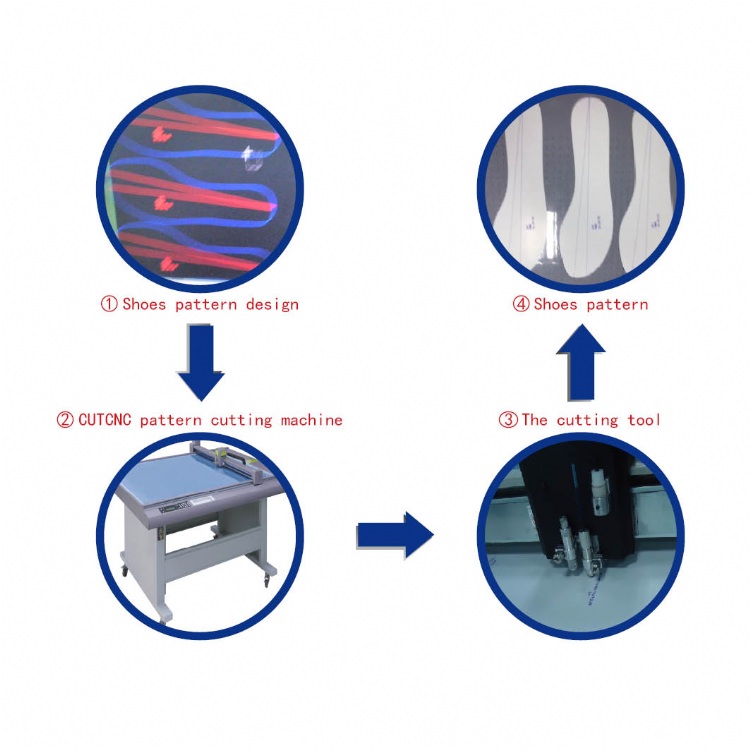

GD0906 shoes die cut flat bed pattern cutter plotter machine
Model: GD0906 shoes die cut flat bed pattern cutter plott
Category: Machine Tools / Tools, Cutters, Mold & Dies / Milling Heads
Characteristics
GD0906 shoes die cut flat bed pattern cutter plotter machine
A1 high speed vacuum cutter of steel belt
way of fixing paper way vacuum absorbing
driving material Import steel belt
effective cutting range 900*600mm
cutting materials red hard paper,plastic board,white board,kraft paper,fibre
cutting way drawing by pen,half cutting,whole cutting
cutting thickness 0.5-2mm
cutting precision less or equa 0.05mm
overlapping precision less or equal 0.05mm
resolution ratio 0.025mm
max speed 1000mm/s
work time and character continuous work,operating computer and cutting at the same time,linear high-speed transmission for data
transmitting port international standards:parallel port/RSC232 serial port
capacity of bufferarea buffer area of large capacity,it can finish high-speed transmission on for data at a time
intruction set international standards :HP-GL or DM-PL form can be selected,it is compatible with all kinds of CAD softwares
numerical control board LTD,all-english operating menu,contacbutton
tool type special steel blade
pen type general signing pen,oil pen,ball pen
main structure cutting platform,hesd driving system,control cabinet,control mirco computer,frame,vacuum pump(DE0906)
voltage AC 220V±10% 50 HZ
fuse standard 5A
[email protected]
Specifications
GD0906 shoes die cut flat bed pattern cutter plotter machine
A1 high speed vacuum cutter of steel belt
way of fixing paper way vacuum absorbing
driving material Import steel belt
effective cutting range 900*600mm
cutting materials red hard paper,plastic board,white board,kraft paper,fibre
cutting way drawing by pen,half cutting,whole cutting
cutting thickness 0.5-2mm
cutting precision less or equa 0.05mm
overlapping precision less or equal 0.05mm
resolution ratio 0.025mm
max speed 1000mm/s
work time and character continuous work,operating computer and cutting at the same time,linear high-speed transmission for data
transmitting port international standards:parallel port/RSC232 serial port
capacity of bufferarea buffer area of large capacity,it can finish high-speed transmission on for data at a time
intruction set international standards :HP-GL or DM-PL form can be selected,it is compatible with all kinds of CAD softwares
numerical control board LTD,all-english operating menu,contacbutton
tool type special steel blade
pen type general signing pen,oil pen,ball pen
main structure cutting platform,hesd driving system,control cabinet,control mirco computer,frame,vacuum pump(DE0906)
voltage AC 220V±10% 50 HZ
fuse standard 5A
[email protected]
