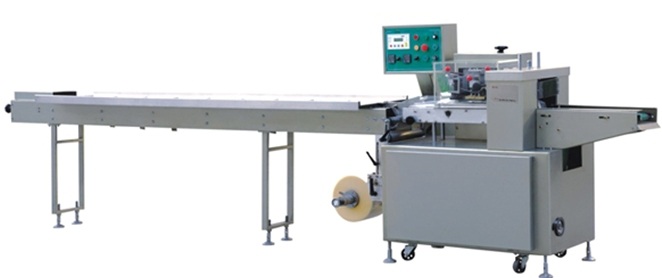

TB-120 Under way film feeding packing machine
Model: TB-120
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Bag Sealing Machines
Characteristics
Applied Range:
Suitable for packing Sticky plaster, Ice-lolly, wet wipes, soap, confection, air cut knife, commodity, and so on.
Main Performance:
1. Packing speed adopts Frequency Conversion Step less Speed.
2. Adopt photo electricity eye double directions control system
3. Adopt form feeding at the lower part, so the film feeding above the chain and you can put products just on the film.
4. Body of machine can be cleaned with water
5. Logical structure of machine, Stable performance, Easy operation.
Technical Index:
Packing ability ≤280Bags/minute
Packing paper length 75-180mm (2cutter); 100-240mm (2cutter); 140-360mm (1cuttter)
The most width of packing film 300-320mm
The highest height of products 6.5cm
products Width ≤120mm
Power 220V
Power 2.5kw
Overall size L3900 x W920 x H1300mm
Machine weight 670KG
