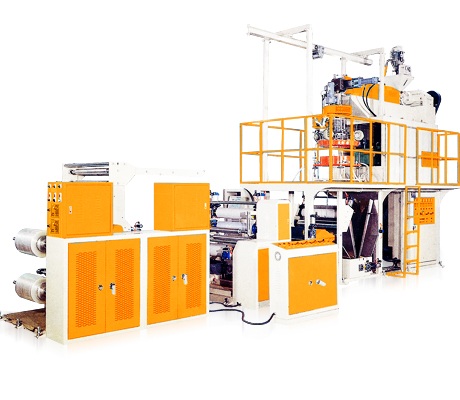

High Speed Rotary Dieinflation Machine For PP
Model: AKPP-65
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Extruders
Characteristics
Gear box design for stepless control by vs motor,dc motor or inverter which depend on customer request.
Screw and barrel made by special steel, with nitriding treatment, grinding and hard chrome plating, for heat resistant, durability and long-term operation.
Rotary die with hard chrome plated with special design air ring produces and even thickness and high clarity film, Core-less winder is available for customer request.
Specifications
MODEL |
AKPP-35 |
AKPP-45 |
AKPP-55 |
AKPP-65 |
Resin |
PP |
PP |
PP |
PP |
Film Width (mm) |
50-300 |
100-400 |
150-550 |
200-700 |
Film Thickness (mm) |
0.03-0.12 |
0.03-0.12 |
0.03-0.12 |
0.03-0.12 |
Extruding Output (kg/hr) |
20 |
32 |
50 |
65 |
Extruder |
||||
Screw Diameter (mm) |
35 |
45 |
55 |
65 |
Screw L/D |
30 |
30 |
32 |
32 |
Screw R.P.M |
45-140 |
45-140 |
45-132 |
45-120 |
Heating Capacity (kw) |
16 |
18 |
20 |
22 |
Cooling Unit |
Air Cooling & Water Cooling |
|||
Air Blower |
1/6HP x 4 |
1/6HP x 4 |
1/6HP x 4 |
1/6HP x 4 |
Sizing Ring (piece) |
8 |
8 |
8 |
8 |
Ring Size (mm) |
50-200 |
50-300 |
150-550 |
250-750 |
Take-Off Unit |
||||
Driving Motor (HP) |
AC 1HP |
AC 1HP |
AC 2HP |
AC 2HP |
Roller Width (mm) |
345 |
560 |
660 |
915 |
Line Speed (m/min) |
5.2-52 |
5.2-52 |
5.2-52 |
5.2-52 |
Winding Unit |
Reel Type |
|||
Driving Motor (Torque Motor) |
0.2KG-M |
0.3KG-M |
0.3KG-M |
0.5KG-M |
Line Speed |
8-80 |
8-80 |
7-70 |
7-70 |
Winding Reel (piece) |
2 |
2 |
2 |
2 |
Paper Core Size (mm) |
0D.90.1D.70 |
0D.90.1D.70 |
0D.90.1D.70 |
0D.90.1D.70 |
Other Accessories |
||||
Tempertature Controller (Zone) |
4 |
4 |
4 |
4 |
Air Compressor (HP) |
1 HP |
1 HP |
1 HP |
1 HP |
Machine Dimension(mm) |
3000x1000x2900 |
4000x1600x3400 |
4500x2000x4300 |
5200x2100x4500 |
Machine Weight (kg) |
1600 |
2100 |
2700 |
3100 |
Optional Equipment |
Rotary Die |
Chiller |
||
Surface Treater |
Hopper Dryer |
