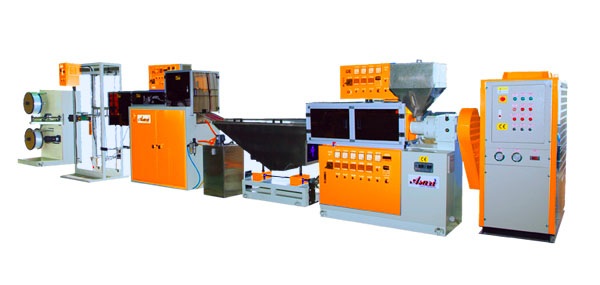

Multi-Layer High Speed CO-Extrusion Zipper Profile Extruder
Model: AB45AZ
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PVC Profile Extrusion Machines
Characteristics
AB45AZ Zipper Profile Extruder is the pioneer of the Chinese world; The quality, output speed, service, research and development are deeply love by those in Europe, America, Japan and other countries.
Changing die can produce all kinds of zipper profile.
The machine is suitable for LDPE and PP resin.
The machine produces high quality zipper profile roll from the extrusion mold, chilling water system, vacuum high-pressure air-dryer, zipper closures joint device, and automatic tension control and servo winding unit with automatic calculation of width/length/quantity.
With additional f25mm extruder the machine can produce co-extrusion colored zipper profile or ultra low temperature zipper profile with color from LDPE, LLDPE, PP or EVA.
Specifications
Main Motor |
10HP AC *1 Set |
|
Total Power Require |
17Kw |
|
JSI Gearbox |
3-Axis 1 SET |
|
Barrel & screw |
L/D 1:30 42mm SACM-645 |
|
Output |
20~60m/min (Ourput varies depend on resin, cooling, profile, profile size, operator and etc) |
|
Stainless Steel Circulation Water Tank |
1 SET |
|
High-Pressure Vacuum Air Blower |
AC 2HP |
|
Take-up Motor |
AC 1/2HP Gear Inverter |
|
Take-up Rubber Roll |
x 3 Set |
|
Main & Secondary Control Panel |
||
Zipper Closure Joint Unit |
x 1 Set |
|
Chiller For Two Unit |
5HP |
|
Include 2 Die |
LD1513 PP1513 LD2004 PP2004 LD1518 PP2010 PP2225 LD2025 LD2040 |
|
Manual Operate Joint Unit |
||
Control Panel |
||
DC Motor |
DC 1/4 HP |
|
Take-Up Frame & Take-Up Roll |
||
Manual Operate Winder |
||
Winder Motor |
||
L-R DC Motor |
DC 1/8 HP |
|
L-R Return |
||
DC Motor Governor |
||
Torque Motor Governor |
||
Manual Operate Winder |
||
Toolbox, Heater, Temperature Controller, On/Off Switch, Filter |
