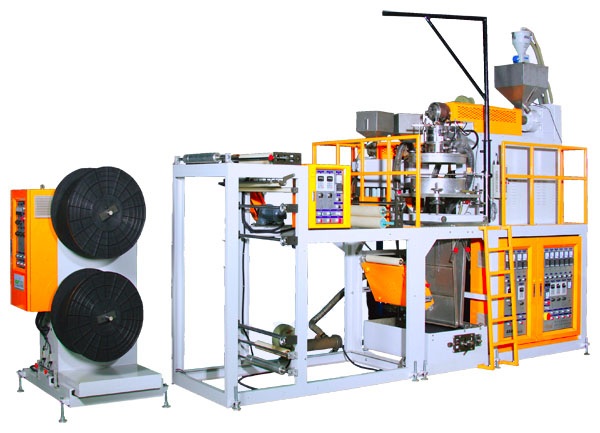

PP High Speed Zipper Film Blown Machine
Model: APZ55/45
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PVC Profile Extrusion Machines
Characteristics
APZ55/45
PP High Speed Zipper Film Blown Machine
Specifications
MODEL |
APZ-45 |
APZ-55 |
Resin |
PP |
PP |
Film Width |
40-300mm |
200-600mm |
Film Thickness |
0.03-0.12mm |
0.03-0.12mm |
Maximum Output |
40kg/hr(Varies depends on resin, thickness, size and etc) |
65kg/hr(Varies depends on resin, thickness, size and etc) |
Barrel Cooling System |
1/8HP |
1/8HP x 2 |
Screw Diameter |
45mm SACM-645 |
55mm SACM-645 |
Screw L/D |
30:1 |
30:1 |
JSI Gearbox |
3-Axis |
3-Axis |
Total Heater Capacity |
17kw |
25kw |
Driving Motor |
20HP+Inverter |
30HP+Inverter |
Die |
f80mm |
f100mm |
Air Blower |
2HP+Inverter |
2HP+Inverter |
Water Ring |
10 Unit |
10 Unit |
Outer Stable Ring |
1 Unit |
1 Unit |
3 Independent Pinch Rolls |
1/2HP Gear Reducer Motor x 3 |
|
Winding Unit |
DC Torque Double Winding + Side-to -Side Swing |
|
Temperature Control |
6 Zone |
6 Zone |
Size & Wieght |
APZ-45 Approximate 6000mm x 1900mm x 2500mm x 1900KG |
|
APZ-55 Approximate 6500mm x 2000mm x 2800mm x 2500KG |
||
Selective Equipment |
||
Varies Die & Water Ring |
Dryer |
|
Automatic Width Control Unit |
Chiller |
|
Automatic Hopper |
Surface Treatment |
|
Air Compressor |
