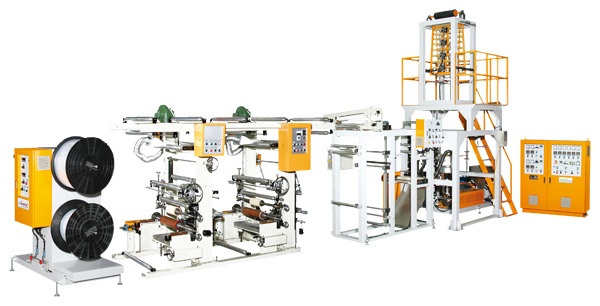

Multi-Layer Coextrusion Zipper Film Blown Machine
Model: AEZ-3L
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / PVC Profile Extrusion Machines
Characteristics
AEZ-3L
Multi-Layer Coextrusion Zipper Film Blown Machine
Specifications
Material |
HDPE/LDPE/LLDPE |
AEZ-25 25mm Extruder with Pressure Transducer x 2 |
|
Screw Diameter |
55mm x 1 45mm x 2 SACM-645 |
Screw Speed |
15~120 cycle/min |
Screw L/D |
30:1 |
Main Motor Power |
15Kw x 3 |
Heater Capacity |
3-Axis x 3 |
Two Layer Aluminum Alloy Air Ring x 2 Set |
|
Driving Motor |
15HP AC + Inverter x 3 Set |
Barrel Cooling System |
1/8HP x 2 x 3 |
Maximum Single Screw output |
40kg/hr |
Maximum Bag Width |
700mm |
Film Thickness |
0.03~0.12mm |
Control Box |
Stand-Alone Type x 3 |
Temperature Control |
5 Zone x 3 Set |
Air Blower |
2HP AC + Inverter x 2 |
Joint Unit |
720mm |
Take-Off Motor |
1HP AC |
Pinch Roll Width |
720mm |
First Pinch Roll |
|
Second Pinch Roll |
|
Winder |
Side-to-Side Double Winder Speed & Torque Control |
Winder Motor |
1HP DC Motor (1/2 HP DC) x 2 |
Standard Spare Parts |
1 set |
