Automatic Bag Packaging Side Sealing Machine

Enlarge

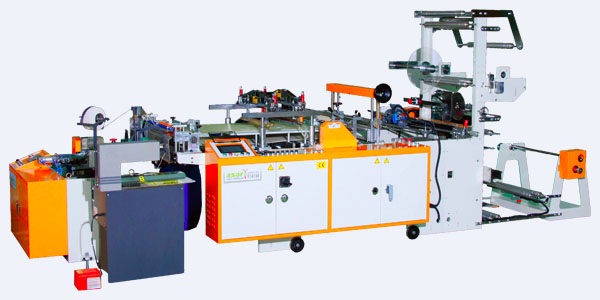

Automatic Bag Packaging Side Sealing Machine

Model: APS

Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Plastic Bag Making Machines

Online Inquiry

Characteristics

Suitable for LDPE, PP OPP CPP and BOPP.

This machine designed to improve the traditional bag collecting processing which require one operator to control one machine.

This machine allows one operator to control several machines with automated process from collector to box packaging; to improve performance and decrease cost.

Servo driven is fast and precise.

Servo motor cutting Control System.

The unit uses PLC Control System.

Specifications

Micro-computerized HCI
2.0kw Japan Made Servo Motor
Maximum Cutting Width	520mm
Maximum Cutting Length	450mm
Thickness	0.04-0.2mm
Output	30~230pc/min (Varies on Film Thickness, Bag Width, zipper Profile)
Main Motor	西門子 Siemens 1.5Kw
Inverter	台達 Delta B7 Made in Taiwan
Photo Cell	German Made x 1
Precision Copper Knife	1 Set
Silicon Carpet Heat Sealing
Cooling Pressing Plat
Heat Capacity	1.4 KW
Packaging Roller Unit
Touch Screen Digitalized Controlling System
Rotational Clamp Positioning System	1 Set
Magnetic Switch Controlling System
Cylinder	4 Set
Unit Frame	1 Set
Winder Motor	5GN-15K 51K60Gn-S
Tying Machine
Maximum Package Height	20cm(8")
Table Size	40cm x 65cm
Packaging Size	Minumum 2.5cm(1") Diameter
	No width or length restrictions
Speed	40~50 Cycles/minute
Selective Equipment
Perforating Knife Gusseting Unit Varies Hole Punch Unit CE Self Declaration Modification
