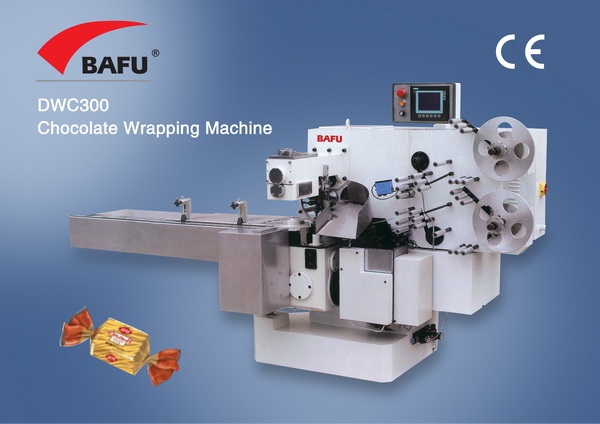

Chocolate Wrapping Machine
Model: DWC300
Category: Packaging, Printing, Food & Pharmacy Machinery / Packaging Machinery / Other (Packaging Machine)
Characteristics
1.Speed: up to 300 Packs/Min;
2.High Quality, CE certified;
3.Photocell tracking, LCD touch screen and PLC control .Easy to operate.
4.The structure of the machine is logical and performance is stable and easy to operate.
5.Application: Chocolate Bar.
Specifications
BAFU DWC300 Chocolate Wrapping Machine
- Speed: up to 300 Packs/Min;
- High Quality, CE certified;
- Photocell tracking, LCD touch screen and PLC control . Easy to operate.
- The structure of the machine is logical and performance is stable and easy to operate.
- Application: Chocolate Bar.
Main performance and construction characteristic
1. Chocolate and candy which are unfit for automating arrangement were fed by conveyor belt then to be pushed into feeding plate by mechanical to pack .
2. The structure of the machine is logical and performance is stable and easy to operate .
3. Photocell tracking , LCD touch screen and PLC control . Easy to operate .
Application : chocolate bar .
Technical parameter
Speed: up to 300bags/min
Bag length : 25-40mm
packing width :15-20mm
Power :3kw ,380V 3P
Overall size: 2700 X 1350 X1450mm
Weight :1000kgs
