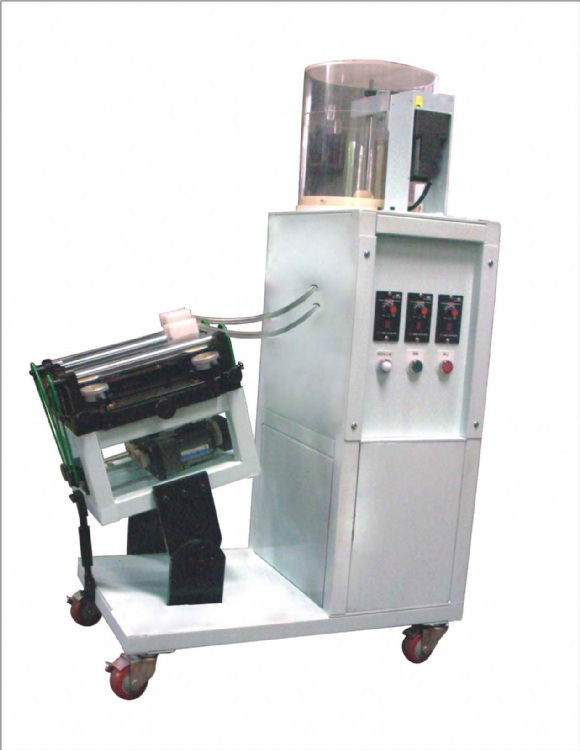

Diameter Precision Sorting Machines
Model: PRS-5
Category: Automatic/Industrial Machines & Equipments / Testing Equipment / Inspecting/Measuring Instrument and Parts
Characteristics
>Versatile and convenient for long time operation, such as a tireless worker.
>Precision rollers, mirror-finish polished and hard chrome plated.
>Tilt of roller base is adjustable.
>Highly Sophisticated Design and Manufacturing.
>Best Tool for Measuring and Sorting.
Specifications
>With two pairs of precise rollers. Versatile application in sorting ball objects.
>Range of measuring and sorting by diameter: 0.5mm~9.6mm
>Suitable balls grade in sorting:ABMA#100(0.0025mm)
>Material of stucture, frame, and body:Low carbon steel(SS41)
>Power: AC 220V .single-phase
>Dimensions: 820mm. (L) x 500mm. (W) x 1315mm. (H)
