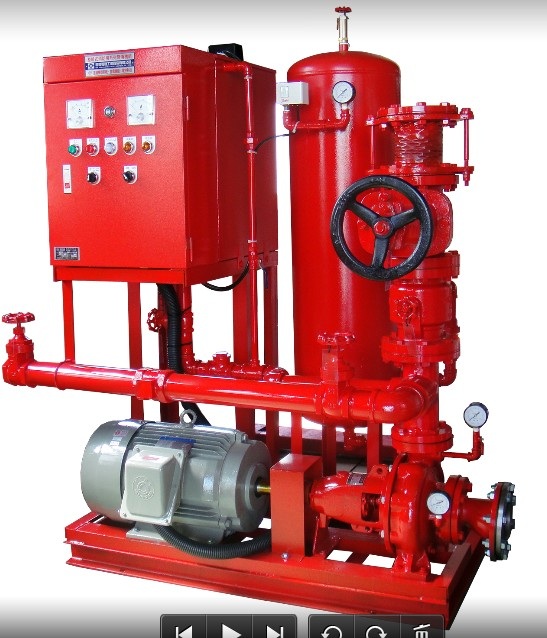

Complete fire fighting pump set
Model: MCT 3220-10HP
Category: Automatic/Industrial Machines & Equipments / Auto-Control Panel Design/Installation / Control Box
Characteristics
1. Fire fighting pump complete set
2. ISO9001:2008
3.Highly efficient, energy saving
4.Self-suction, big flow high head
Specifications
Indoor and outdoor hydrant systemsBfoam systemsBsprinkler systemsBboosting systemsBjunction systems for boosting water.
1. Ambient temperature: 0~+50J
2. Liquid temperature: +4~+80J
3. It is suitable for clean water or non chemical property liquid. It should not contain solid particles in the liquid.
4. Working pressure: 10~20Bar (Different water pumps withstand different pressure resistance.)
1.Horsepower: 7.5HP~300HP
2.Protection: IP54~55
3.Insulation: B,F
4.R.P.M: 2P,4P
5.Voltage: 3 phase 220/380/440/660*60HZ
3 phase 380~415V*50HZ
6.Discharge/suction diameter: 21/2” ~10”
7.Head: Max. 230 M
8.Capacity: 18~830M³/hr.
