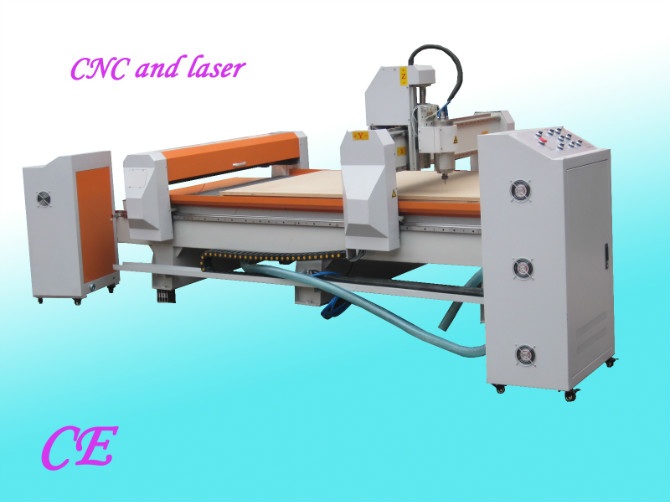

CNC ROUTER AN LASER CO2 CUTTING MACHINE
Model: MTCN-1325
Category: Woodworking Machinery Industry / Others / Other Woodworking Machines
Characteristics
Applicable material：
MDF, wooden plate, veneer, wood, application, PVC, and all metal and nonmetallic materials.
Machine characteristics:
Laser-CNC router seperated,DSP controller system with USB interface,handle controller,easy operation.The machine is equipped with the imported linear guid rail,ball bearing piece.Laser and spindle work stable and sepertely with high precision and long lift.Adopt big power servo engine drive system,together with the Italy air cooled big power cutting main axis make the speed of engraving faster.Vacuum absorb table and no oil vacuum pump ensure convenient operation.Large adsorption power,fewer maintenance,stable performance.The software compatibility is well,it can compatible type3/Artcam/castmate/artcut and CAD/CAM design software.
Specifications
Technical-parameters:
|
X working travel |
1300mm |
|
Y working travel |
2500mm |
|
Z working travel |
450mm |
|
Table size |
1300mm * 3000mm |
|
Working precision |
±0.04mm |
|
Localtion precision |
0.05mm |
|
Table structure |
Vacuum adsorption |
|
X、Y、Z structrue |
X，Y rack，Z Screw |
|
Power consumption |
8000W |
|
The speed of open working |
25000mm/min |
|
The speed of working |
50000mm/min |
|
Spindle power |
4.5KW |
|
Laser power |
80W |
|
The speed of spindle |
0-18000r/min |
|
The type of running |
Domestic servo/Import servo |
|
Working voltage |
AC 380V/50HZ,AC380V/60HZ |
|
Working order |
G Code |
