Item

Description

Type

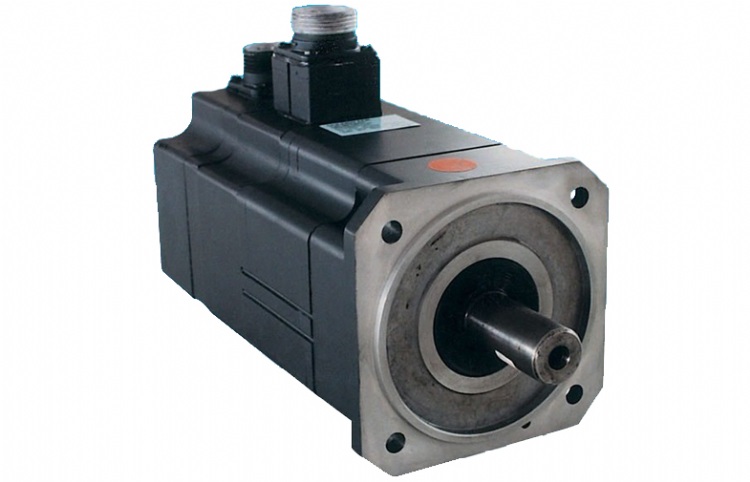

AC servo motor (permanent magnet synchronous motor)

Magnetic material

Insulation level

Feedback system

Temperature protection

Super high coercivity rare earth permanent magnetic material.

Class F insulation level. When the environmental temperature is +40℃, the rotor winding temperature can reach 100 K (△T=100 K). Class H or Class Cinsultation level is optional, in which case the rotor winding temperature can reach 125 K or 145 K respectively.

Standard: square-wave opti-electrical encoder (with U, V, and W signal)

    Options:

    1: Resolver, used in the environment with big vibration and impacts

    2: Sine and cosine opti-electrical encoder, which resolution can reach  2²⁰

    3: Absolute encoder

Positive temperature coefficient (PTC) thermistor. When the temperature is 20°, R ≤ 250Ω .

    Option: Heat-sensitive switch

Installation mode

Protection level

Cooling

Exterial paint

IMB5  Options: IMV1, IMV3, and IMB35

IP64  Options: IP 65 and IP67

Natural cooling

Flat grey paint

Options: customized paint

Bearing

Radial shaft seal

Shaft

Double row deep groove ball bearing

Drive shaft seal

Standard:

    Type a: Plain shaft, no keys

    Option:

    Type b: Shaft with keyway, keys, or customized shaft

Vibration level

Rotation precision

N

    Options: R and S

N

    Option: R and S

Noise

GK603 ≤ 55 dB (A)

GK604 ≤ 55dB (A)

GK605 ≤ 60 dB (A)

GK606 ≤ 65 dB (A)

GK607 ≤ 65 dB (A)

GK608 ≤ 70 dB (A)

GK610 ≤ 70 dB (A)

GK613 ≤ 70 dB (A)

GK618  ≤ 76 dB (A)

Connection

Socket connector (GK603-GK610)

    Option: Outlet box

Outlet box (GK613 or a later version)

    Option: Socket connector

Options

Maintenance-free high-reliability permanent magnet safe brake (made in Germany)

High-precision planetary gear reducer or other reducers
