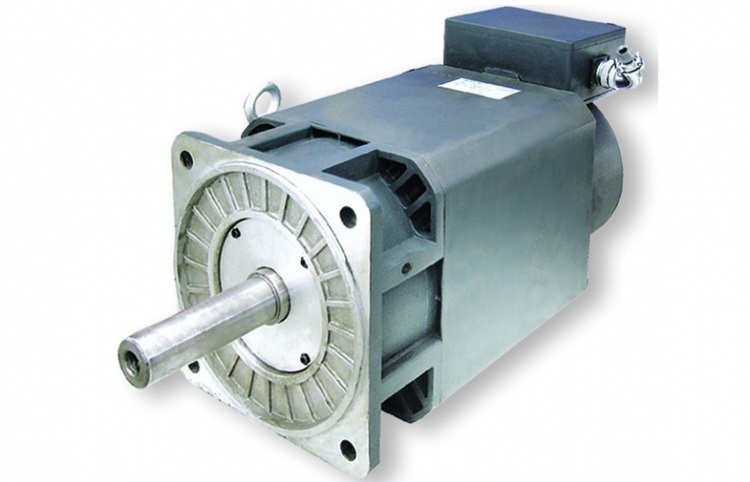

HNC Asynchronous /spindle servo motor
Model: GM7 series
Category: Automatic/Industrial Machines & Equipments / Automated Machinery & Equipments / Automatic Material Handling Equipment
Characteristics
GM7 series of AC servo spindle motor can be used with various high, medium and low-grade spindle AC servo drives to perform closed-loop control operation and achieve excellent performance. GM7 AC servo spindle motor is widely used in the fields that requires AC servo spindles such as CNC machine tools, building materials, blow moulding machines, textile, light industry, metallurgy, transportation lines.
GM7 series of AC servo spindle motors consist of stator, rotor, low-noise fans, and high-precision encoder (not required for open-loop control). Based on the structural optimization design and magnetic circuit optimization, GM7 series of AC servo spindle motors adopt the special class F insulation, complete machining, and high-precision dynamic balancing process.
Specifications
Item |
Description |
Type |
Digital AC servo frequency conversion motor (AC squirrel-cage induction motor) |
Insulation level |
Class F insulation, special insulation architecture |
Feedback components |
Incremental square-wave or sine-wave encoder |
Temperature protection |
Positive temperature coefficient (PTC) thermistor |
Forcible cooling fan connection Opti-electrical encoder connection |
Terminal in the terminal box Circular socket connector |
Installation mode Protection level Cooling Surface paint |
IMB5 IMB35 IP54 Option: IP55 Force cooling: The air is from the drive end to the non-drive end Flat grey paint or customized color |
Bearing and shaft |
Double row deep groove ball bearing Standard: Shaft with keyway and keys Option: Customized |
Vibration level and rotation precision |
N Option: R N Option: R |
Noise |
100 and 132 base frame ≤ 70 dB (A) 160 base frame ≤ 72 dB (A) 110 base frame ≤ 76 dB (A) 225 base frame ≤77 dB (A) |
