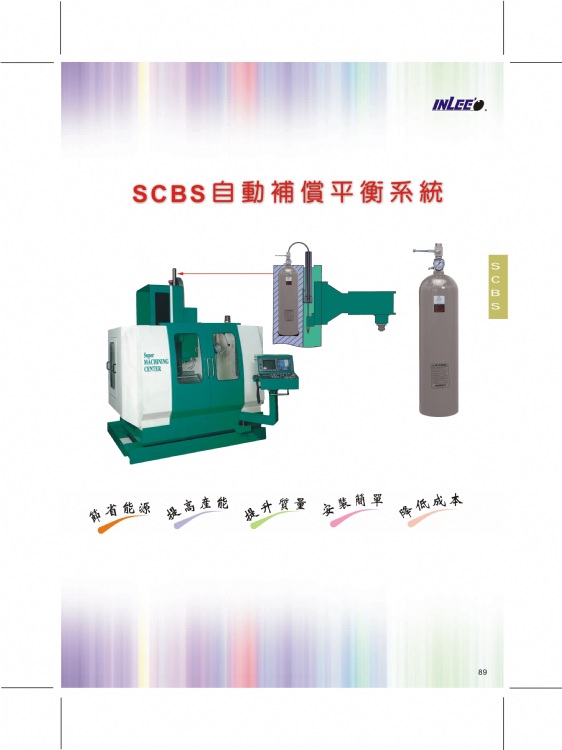

SCBS

Model: SCBS2L/ SCBS10L/ SCBS20L/ SCBS30L

Category: Machinery Parts and Components / Hydraulic and Pneumatic Components / Hydraulic Components

Online Inquiry

Characteristics

THEOREM
Self-compensating balance system which utilized hydraulic accumulator function, controls hydraulic cylinder with spindle servomotor up & down motion to balance the weight of headstock.Enhancing high speed, high accuracy & reduces servo motor load, prolong life of ball-screw assembly.

FEATURE
1. Energy savings, no power system required.
2. Increases productivity, less respond time, no noise, improvement over
conventional counter-weight and hydraulic system design.
3. High cutting performance, prolong machine life, for a better quality machine.
4. Easy to install, improve efficiency.
5. Low cost & increase profitability, if installed properly, no maintenance is needed.

Specifications

benefit comparison with other balancing systems.

Excellent

Average

Poor

	ＳＣＢＳ Self- compensating counter balance system	Counter weight (block)	Hydraulic counter balance	Increased servo motor size
Reacting time
Energy saving
Easiness to install
Weight (volume)
cost	Low	Average	High	High
Summary	The best solution available today.	Large volume and heavy weight, when in high speed machining chain motion causes vibration& accuracy issues.	Hydraulic motion unite,costly in energy, space taking, oil leakage and noise are environment issue, delay in reacting from hydraulic solenoid block, and counter balance valve make synchronization with servo motor more difficult, too many parts involved, not easy to maintain.	Two extra motor cost, acceleration and deceleration energy cost, heavy load on ball screw transmission mechanism maintenance cost is high.

Accumulator cylinder Specification
