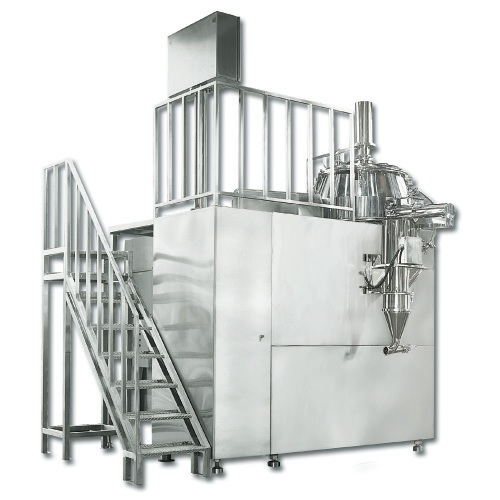

High Shear Mixer
Model: SMG
Category: Packaging, Printing, Food & Pharmacy Machinery / Food & Pharmacy Machinery / Pharmaceutical Machines
Characteristics
Process:
By using vacuum system or lifting system to transfer powder from an IBC (Intermediate Bulk Container) into the High Shear Mixer mixing bowl.
Several kinds of powder can be uniformly mixed by using the main impeller of the machine.
Binder (solution) can be sprayed from pressure tank (or solution tank) to powder by the spray nozzle.
Then the high-speed chopper breaks the agglomerates into granules.
Finished wet graules will be discharged from the discharge valve of the High Shear Mixer. (The finished wet granules can be also transfered to a container of Fluid Bed Dryer via an in-line mill.)
Features:
Follows the regulations of cGMP, PIC/S GMP, FDA.
High uniformity of mixing: Even with big difference of bulk density of powder still can mix very well. Binder (solution) can be sprayed from pressure tank (or solution tank) to powder by the spray nozzle.
High Shear Mixer Operates just in Short mixing time
a. Dry mixing: 2~5 minutes
b. Granulation: 5~10 minutesFinished wet graules will be discharged from the discharge valve. (The finished wet granules can be also transfered to a container of Fluid Bed Dryer via an in-line mill.)
Multi-safety Interlock System:
a. Stop operation when the cover is not closed properly
b. Stop operation when the cover of discharge valve is not closed properly
c. Stop operation when the air pressure is not sufficient for the seal
Separated compressed air routes of the High Shear Mixer is especially designed to meet the good air quality: the compressed air for air seal will pass through an air filter. For the cylinder, the compressed air will pass through lubricating oil to ensure the air quality and lubrication
Equipped with unique design of the air seal: This design can prevent powder access into the main seal and the chopper to prevent powder dropping
The clearance between impeller and the bottom of mixing bowl is only about 0.5~0.8 mm; therefore, high mixing efficiency can be achieved
Clamps of the cover: special designed by an eccentric wheel of clamps for easy operation and well sealed
Please contact us today for further information on our equipment units.
