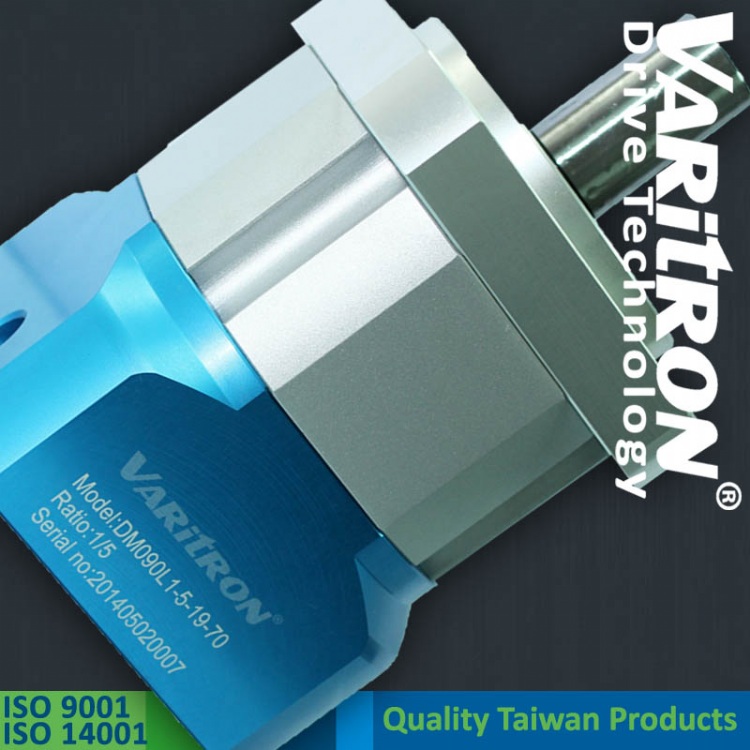

Precise Servo Gearhead
Model: DM
Category: Automatic/Industrial Machines & Equipments / Industrial Machines / Speed Reducers
Characteristics
-Low Backlash
-High Precision
-High Torque
Planetary Precision Servo Gearhead is widely used in servo motor power transmission. Its wide range of speed ratio and low backlash enables to use in motion control in robot arms and power transmission.
Specifications
<< More Information is Available upon Request >>
Quality Precise Cyclo Servo Gearhead by Varitron from TAIWAN
Precise Cyclo Servo Gearhead
Product Description
Main Features
-High Precision Gear
The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.
-High Torque and Stability
High tensile strength alloy steel and improved gear hardening technics employed to maintain high accuracy and long service life.
-High Efficiency
Exceeds 95% for single stage and 92% for Double Stage.
-Quiet Operation
Feature design to reduce vibration and noise to under 65dB.
-Single-piece Gear box & Advanced Surface Treatment
The Planet servo Gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosion-resistant capability.
-Integrated Planetary Arm Bracket
The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.
-Modular Deisgn of Motor Connection Plate
The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.
-Modular Input Shaft
Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.
Model
-Precision
 |
|||
| DM | DF | RAM-S | RAM-SS |
 |
|||
| RAM-H | RAM-D | RAM-F | |
-Standard
 |
|||
| DH | DL | RAH-S | RAH-SS |
 |
|||
| RAH-H | RAH-D | RAH-F | |
Quick Facts
| Model Number | Precise Cyclo Servo Gearhead |
| Speed Reduction Method | Planetary gear mechanism with designed tooth profile |
| Efficiency | 95% per stage gearbox |
| Shock Load | 300% as there are only compressive forces rather than shear forces on the tooth |
| Gear box Mounting | Flange Mounting, Foot mounting parts sold separately |
| Reduction Ratio |
Up to 1:10 per stage 1:1000 on 3-stages |
| Capacity Range | 100Watt to 11,000Watt |
| Enclosure | Totally enclosed IP55 |
| Power Source | Servo motor, stepper motor |
| Backlash |
DM series: below 5arcmin on single stage DH / DL series: below 10arcmin on single stage |
|
Reduction Gearbox Lubrication Method |
High viscosity anti-separation grease |
| Method of Coupling with Driven Machine | Coupling, gears, chain sprocket or belt |
| Standard | CE, UL, CSA, CCC, ISO 9001, ISO14001 |
| Warranty | 1 Year Limited Warranty |
Precise Cyclo Servo Gearhead Specification
<< More Detailed Information You May Needed >>
E-Catalog
Website: http://gear.fyi/pgb
Packaging & Shipping
Packaging detail: Precise Cyclo Servo Gearhead will use wooden case or carton box or according to customer requirement.
