CNC CENTERLESS GRINDING MACHINES- BEARING TYPE

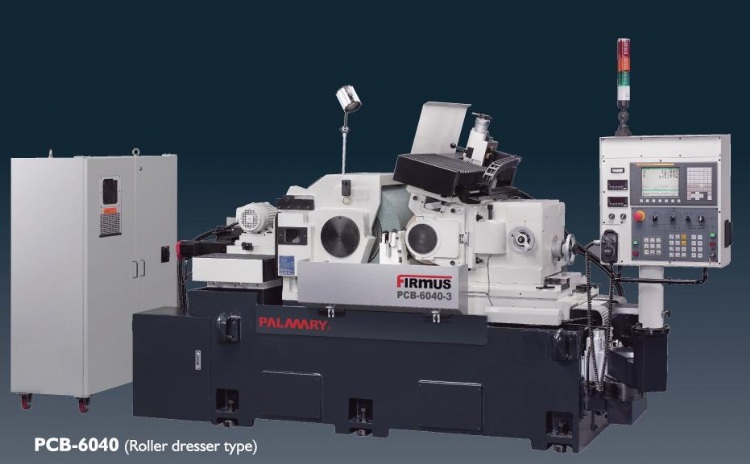

Model: PCB-6030 / PCB-6040 / PCB-6050 / PCB-6060
Category: Machine Tools / Grinding Machines / CNC Grinding Machines
Characteristics
Grinding Wheel Side
1. The double support bearing type spindle offers even grinding force distribution on the contact surface. During grinding the stress is even on two ends to avoid taper shaped work pieces.
2. Diamon roller dressing device can be attached to the double support wheel unit, features stable dressing reducing dress worn out. (Special Type)
3. Oil mist lubrication device aids wheel spindle lubrication, clean and
constant temperature.
Regulating Wheel Side
1. Instead of using hydraulic driving system, the regulating wheel is driven by linear motor. This improves dressing speed and stable control.
2. Adjustable worm shaft eliminates the gap, increases transmission efficienct and lifetime.
3. The one “ V ” & one flat feeding slide design reinforces the feeding stability. The entire feeding slide is hand scrapped to reduce friction and to increase accuracy of jog movement.
Specifications
