UV Large Format Flatbed Printer
Model: YC2513
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Lithographic Printing Presses
Characteristics

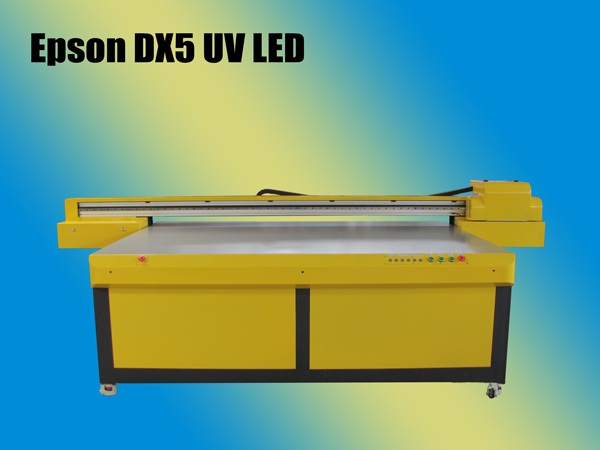

Ntek UV Large Format Flatbed Printer
Features of Ntek UV Large Format Flatbed Printer:
1. It uses Epson DX5 Printhead. It can use both one and two printheads.
2. It uses UV ink, which can be instant drying with the help of the UV LED lamp.
3. It is multicolor, which can print many colors, including CMYK and White color.
4. Our Ntek UV Large Format Flatbed Printer has a Printhead Cleaning System, which is automatic cleaning system or automatic dry-preventing system.
5. Ntek UV Large Format Flatbed Printer has a high resolution with 1440 dpi.
6. The printed images have a high life, 3 years(outdoor),10year(indoor).
7. A lower power with1100W.
8. Warranty: 1 year exclude the Print head,Ink filter, Ink pump.
9. After-sale Service: 24-hour on-line realtime technology service.
Specifications
|
Product Model |
YC2513 |
|
Printhead Technology |
Drop-on demand piezo electric |
|
Printhead control |
Printhead voltage is software adjustable |
|
Printhead Type |
EPSON DX5 Printhead |
|
Printhead Number |
1/2 |
|
Ink Characteristics |
UV Curing Ink |
|
Ink reservoirs |
Refillable on the fly while printing/1000ml per color |
|
LED UV Lamp |
more than 20000-hours life |
|
Color Control |
ICC based color,curves and density adjustment |
|
Printhead arrangement |
CMYK/C M Y K Lk LLk Lc Lm |
|
CMYKW/C M Y K Lk LLk Lc Lm W |
|
|
CMYK*2/C M Y K Lk LLk Lc Lm*2 |
|
|
Printhead Cleaning System |
Automatic Cleaning System, Automatic Dry-preventing System |
|
Guide Rail |
Taiwan HIWIN(THK optional) |
|
Working Table |
Vacuum Sucking |
|
Printing Size |
YC2513:2.50x1.30m |
|
Print Interface |
USB2.0 |
|
Media Thickness |
within 100mm, higher can be customized |
|
Printing Resolution&Speed |
360x720DPI(4pass) 25Sq.m/h(2 EPSON DX5 Printhead) |
|
360x1080DPI(6pass) 20Sq.m/h(2 EPSON DX5 Printhead) |
|
|
720x720DPI(8pass) 15Sq.m/h(2 EPSON DX5 Printhead) |
|
|
720x1080DPI(6pass or 12pass) 12Sq.m/h(2 EPSON DX5 Printhead) |
|
|
720x1440DPI(8pass or 16pass) 6Sq.m/h(2 EPSON DX5 Printhead) |
|
|
Life of printed image |
5 years(outdoor),10year(indoor) |
|
File Format |
TIFF,JPEG,Postscript,EPS,PDF etc. |
|
RIP Software |
UltraPrint |
|
Power Supply |
220V 50/60Hz(10%) |
|
Power |
2000W |
|
Operation Environment |
Temperature 20 to 30℃,Humidity 40% to 60% |
|
Equipment Dimension |
YC2513:3.90(L)x1.85(W)x1.30(H)m |
|
Equipment Weight |
YC2513:800kg |
|
Warranty |
1 year exclude the Print head,Ink filter, Ink pump |
|
After-sale Service |
24-hour on-line realtime technology service |
