internal gear inspection
Model: internal gear inspection
Category: Mold and Die Industry / Peripheral Equipment Mold &Die / Inspection & measurement
Characteristics
We have imported Tokyo TTi-150E gear tester from Japan since 2011.

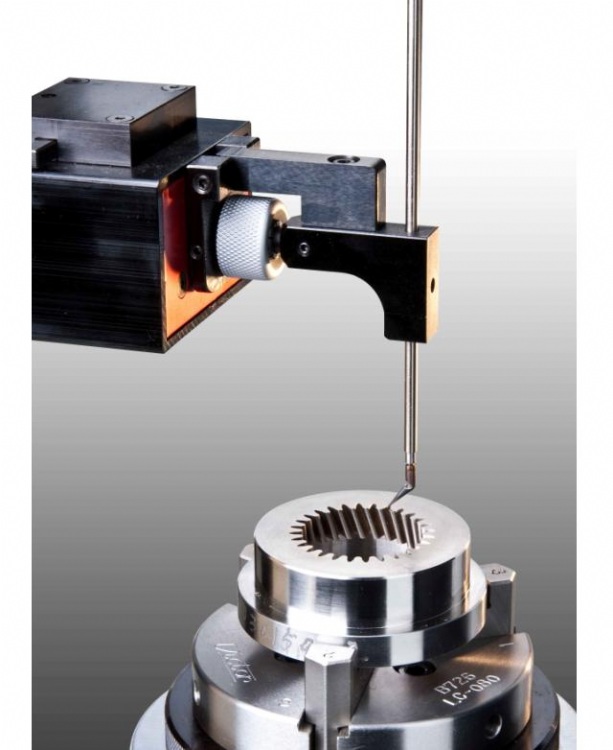

The TTi-150E is able to measure the internal gear (mold core) after EDM.
The measurements include the tooth profile, lead and pitch of spur,
helical and internal gear.
This machine can measure gears up to module 4.0 and less to 0.2 mm,
and the outside diameter can be up to 140mm and inside diameter less to 20mm.
We have capability to monitor the change of electrode and inspect the result after EDM.
