• YLU FULLY AUTOMATIC HIGH-SPEED UV SPOT VARNISHING



Enlarge

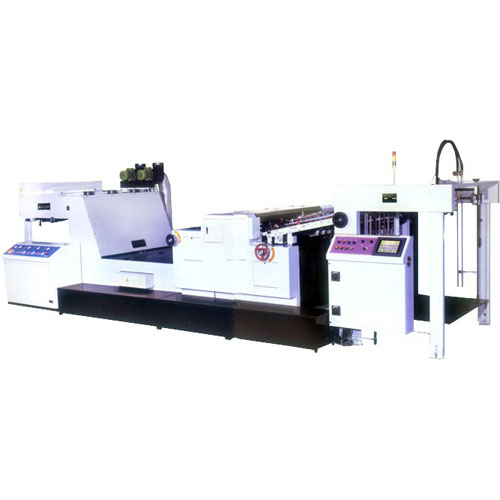

YLU FULLY AUTOMATIC HIGH-SPEED UV SPOT VARNISHING

Model: YLU-350S

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Varnishing Machines

Online Inquiry

Characteristics

1. Newest model of high efficiency feeder enabled the vacuum pump to provide paper sucking ,reduce noise and stability. Suitable to works with spot varnishing product.

2. The conveyor system adopted 9 pieces type of gripper for paper sheet feeding. The transmissionchain system operated on high-speed printer structure with stable and safe rail conveyance. Both thick and thin paper cam be used, also perform spot varnishing according to the product needs.

3. The pressure roll adopts high-speed printer type adjustments. Single side adjustment, no needs to adjust back and forth, due to oil thickness at the right and left sides, oil pressure gauge is attached.

4. The older model of receiving roll usually cause oil specks on the varnishing paper and instead the air flowed system is been used. After the varnishing the paper will not have specks and thequality improved.

5. The speedy type-faced is changed from up anddown, which saves time and less trouble compared with the older model. The type-faced can be adjusted from the four sides and enableprecise spot coating matching with resin plate.
6. the UV oil pressure control roll is reversed rotated. It's has the following characteristics:

1.) Newest rubber toll model adapts the hydraulic pressure control, so that the rubber wheel will not be damage, and a hydraulic oil flow control gauge is attached.

2.) By controlling the thickness of UV oil layer, the rubber roll can be oil less.

3.) The reverse designed rotation helps the dust on paper surface to be removed naturally, and to recover the oil back to tank.

7. The UV lamp case has three lamps per set. The system is electronic circuit designed. When paper feeding occur the lamp will automatically turn on. Thus when paper feeding is stopped the lamps are switched back to semi-on position. This is to prolong the lamp life and to save power consumption. There is a stainless steel conveying grip below the lamp case. Which rotated to match the operating speed. Once the paper falls down the conveying grip will automatically adjust back to prevent paper being shined by the lamp that may cause fire.

8. This machine can employ water base environment-friendly smoothing(shining)process, and has an INFRA RED RAY device (optional).

9. The special cooling system maintained the paper quality, and will not damage after the varnishing and laminating process.

10. The steam-line feeding system allows carry gripper to receive and collect paper. The stacker system adopted wind pressure circuit. The main feature of the mechanism reduced noise, low malfunction easy to change paper size and at random selects paper during operation.
