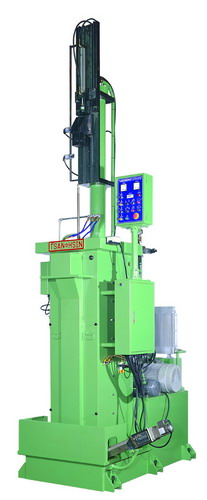

Broaching machine, Internal, External
Model: TH-10X1500A
Category: Machine Tools / Broaching / Slotting Machines / Broaching Machines, Vertical
Characteristics
In business for over 20 years since 1982, Tsan Hsin is a dedicated manufacturer of hydraulic broaching machines. For thanks to many companies’ support, we are absorbed in research and development more high quality and efficiency design of broaching machine in order to enhance its practical utility and make it more outstanding. For many years, our quality control system already been identified with other companies in the same field, with the enthusiasm and devotion of service and priority of clients to strive for perfection is our consistently motto.
Specifications
01.Broaching Power:10ton
02.Max. StrokE:1500m/m
03.Max. Broach Length:1500m/m
04.Cutting Speed:1- 6 m/min
05.Return Speed:1- 7 m/min
06.Driving Motor:15H6P
07.Cutting Oil Motor:1/2H4P
08.Tool-Lifting Motor:3H 4P
09.Hydraulic tank:500L
10.Cutting coolant tank:200L
11.Lubricant:2L
12.Max. Hole Diameter:120m/m
13.Max. External Diameter of workpiece:460m/m
14.Highest Dimension of Machine:4900m/m
15.Area of Machine:1500m/mx*1700m/m
16.Total Weight of Machine:3500kg
17.Table Height:2300m/m
