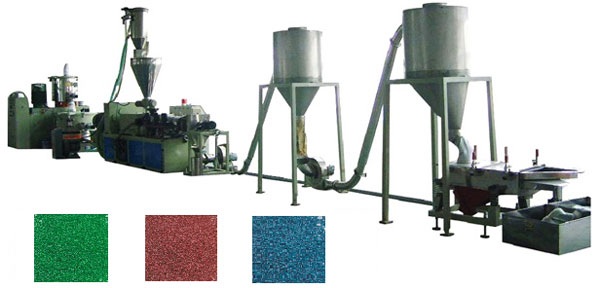

PE film granulator
Model: SJPP
Category: Plastic and Rubber Industry / Machinery for Processing Plastics / Recycling & Reproducing Equipment
Characteristics
Payment & Shipping Terms
Payment Term: T/T,L/C
MOQ: 1 Set/Sets
Means of Transport: Ocean
Supply Capacity
Production Capacity: 100-750kg/h
Packing: wooden case or plastic...
Delivery Date: 30 working days
Specifications
Design conception:
-High speed on the high quality base, high yield extrusion.
-Low temperature design concept, ensure extrude the high quality of the products.
-High torque output, super thrust bearing.
-The gear and shaft is high intensity alloy steel, and are processed by carburization and tooth grinding.
-High hardness and clean degree, and extremely low noise.
-Automatic hopper dryer to prevent materials moist.
-Automatic feeder effectively reduces the labour intensity.
-May select weight in feeding unit to control product weight.
-Automatic PLC intelligence control to achieve the linkage action of main machine and auxiliary machine.
-Man-machine interface easy to supervise, the process and the machinery condition can be conveniently comprehended.
-According to the need to replace control method(temperature control meter).
-Material character is 38CrMoALA, nitrogen treatment,anti-grinding.
-Strict temperature control accuracy, wind cooling and combined with water cooling.
-Unique feeding entrance design, has the perfect water-cooling device.
- Professional tramp trapezoid groove design bushing.
- The screw barrel with the groove surface of feeding bottom covering,
has the enhancement feeding function, which make sure to extrude high speed and high yield.
Extrusion products as below:
-Applicable to PP-R, PE ignite gas pipe and PEX cross-linking tube, the aluminum plastic composite tube, ABS pipe, PVC pipe, HDPE pipe silicon core pipe and different co-extruding composite pipe.
-Plate and sheet material extruding:
Applicable to plate and sheet material such as PVC, PET, PS, PP, PC and other different plastic extruding, like silk and bar, etc..
-Profile extrusion:
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PVC and polyolefin.
Applicable to plate and sheet material such as PVC, PET, PS, PP, PC and other different plastic extruding, like silk and bar, etc..
-Profile extrusion:
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PVC and polyolefin.
-Modification and granulation:
Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
