CNC High speed Single station Die-cut (Hot-stamping) machine

Enlarge

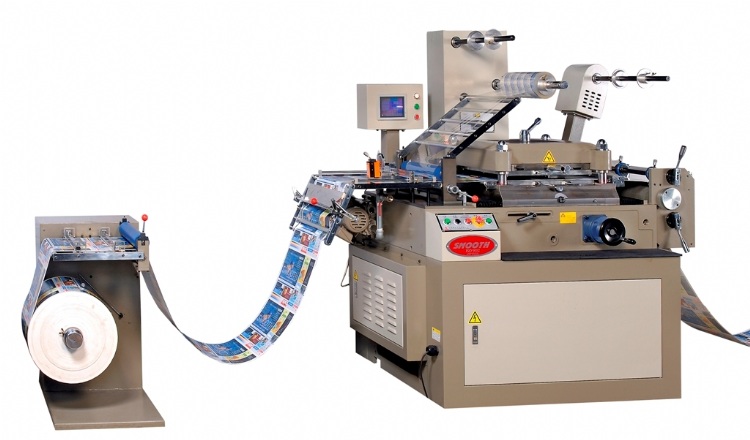

CNC High speed Single station Die-cut (Hot-stamping) machine

Model: SPM-450F / SPM-340F / SPM-320F

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Hot Stamping, Printing & Embossing Machines

Online Inquiry

Characteristics

*Gearless as full servos drive therefore highest speed (300 imp/min, for hot stamping too) in the world flat-bed field, silence, durable. Evidences please refer:
http://media.manufacture.com.tw/tradeshow.php?mid=8288&mp=340FT300rpmspeedHotstamping
http://media.manufacture.com.tw/tradeshow.php?mid=8288&mp=340FT300rpmspeedHotstamping

*Independent servo drive die-cut (embossing, hot stamping) station.
*Independent servo drive Diamond finished feeding drums save material cost (explained by 1st attached comparison).
*CNC full-automatic feeding / register system as maximized computerize, tolerance in microns, wastage even around meter.
* Real flat-bed style against to conventional Oblique flat-bed style for all station area evens pressure and prevent flutter of the web (explained by 2nd attached comparison).
*English / German / Turkish etc language HMI touch panels (possible for other Latin alphabets language too).
*Auto alarm error inspection pages in touch screen for easy troubleshooting.
*2nd pass scanner system & unit (photocell to read printed register mark for registration).
*Skew, lateral, longitude register adjustment.
*Lamination unit.
*Along web style hot stamping foil feed aligns with the web feed as standard. Across web style can be option.
*Foil saver, Photocell for Hologram hot foil register, Full-cut (through-cut), Multiple laminations etc units available. Please refer:
http://media.manufacture.com.tw/tradeshow.php?mid=8288&mp=340FTFoilSaver
*Vacuum against web flutter and tension control.
*Auto greasing piping.
*Rotary level Unwinder.
*etc

Details please check http://www.smoothmac.com/die-cut-machine.htm.

Specifications

Specification	SPM-450F / SPM-340F / SPM-320F
最大紙寬Max. web width	450 mm / 340 mm / 320 mm
最大模切(燙金)面積 (mm) Max. Die-cut(Hot stamping) Area	430 (W)x 410 (L) / 330(L) x 310(W) / 300(L) x 300(W) Ps. Hot stamping area same or a little smaller
工作台座 Working stations	標準standard 1 座 station, By standard 2^nd pass unit can do as many working quantity as the setting
最大速度Max. speed	450F : 200 RPM, 12,000 imp / hr On-line with SPM-450OR : 200 RPM (imp/min) 340F : 300 RPM, 18,000 imp / hr On-line with SPM-340LR : 300 RPM (imp/min) 320F : 200 RPM, 12,000 imp / hr On-line with SPM-270LR : 200 RPM (imp/min)
機械尺寸Machine dimension	L200 x W130 x H180 (cm) / L160 x W130 x H170 (cm) / L160 x W125 x H170 (cm) /
機械重量Machine weight	2500 KG(N.W.) , 3300 KG(G.W.) / 2200 KG(N.W.) , 3000 KG(G.W.) / 2000 KG(N.W.) , 2800 KG(G.W.)
