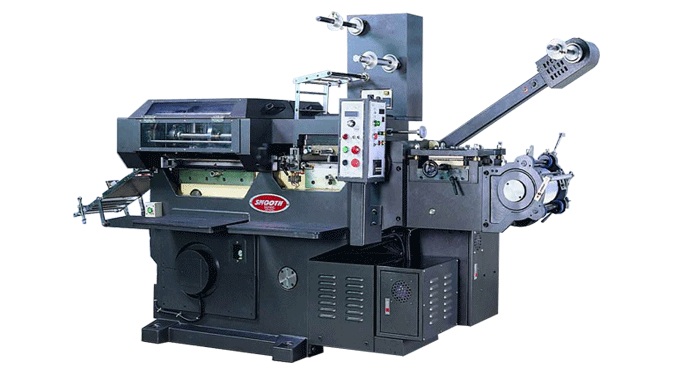

CNC Label Printing Machine
Model: SPM-280DHL / SPM-210DHL
Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Label Printing Machines
Characteristics
1. With scanner CNC Automatic computerized feeding & register system to provide precise printing, laminating, die-cutting (hot-stamping) operation easily.
2. Independent speed controllable inking cylinder & oscillating inking table :
a. Ink kneading more properly depends on jobs need to get best printing quality
b. Beneficial for the very thin dots, lines, alphabets printing. To avoid traditional style disadvantage : increase ink but the icon blurred ; if not can't be printed .
c. Ink washing easily & convenient.
3. Oblique design with Magnetic bottom plates printing & Die-cut (hot stamping) stations more powerful pressure but light carrier weight benefit for full-layout printing & maintenance. Separately pressure, positioning adjustments for printing or Die-cut (Hot stamping) stations while operating.
4. Easy changeable & movable Printing, Die-cut (Hot stamping) blocks on upper chases benefit for quick printing, Die-cut (Hot stamping) plates mounting & change. Specialize printing blocks no adhesive remain printing plate mounting easily.
5. Along, across & askew web angle adjustment for Die-cut (Hot stamping) station when machine operating.
6. Hot stamping function is included not for optional unit. Along web style will have more bigger stamping area and more steady to get good stamping result than Across web style.(Additional Across web style Hot stamping unit can be option)
Specialize feeding drum
7. Specialize feeding drum no pressing traces remain on web while feeding.
8. Transmission by Unique Cam design instead of Big gear style as other machines. Unique Cam will provide more
power to working station to get better quality.
9. Machine body made by professional CNC hole drilling and One casting body integrated molding. Machine parts made by
CNC lathe to achieve strict QC request. Patent construction can protect the connection part so machine is very
durable, smooth & silence.
10. Automatic lubricating and Non-stop pressure adjustment, easy maintenance and assures the machine running smoothly.
11. Rotary machine style Unwinder, Alloy (no rust but against static) feeding shelf, Lamination unit automatic & manual askew adjustment & tension adjustment, Vacuum suction device to against web flutter...etc.
Specifications
Specification |
SPM-280DHL |
̤jȼeMax. web width |
280 mm |
̤jLꭱnMax. Printing Area (mm) @1 color G2 colors T3 colors |4 colors 5 colors 6 colors By standard 2nd pass unit can do as many color quantity as the setting |
500(L) x 270(W) 242(L) x 270(W) 156(L) x 270(W) 113(L) x 270(W) 88(L) x 270(W) 70(L) x 270(W)
|
̤jSnMax. Hot stamping Area (mm) |
140(L) x 260(W) |
̤jҤnMax. Die-cut Area (mm) |
270(L) x 300(W) |
̤jtMax. speed |
9000 RPH , imp / hr |
ؤoMachine dimension |
L260 x W140 x H198 (cm) |
qMachine weight |
4100 KG(N.W.) , 4600 KG(G.W.) |
~nMeasurement |
9 CBM |
Specification |
SPM-210DHL |
̤jeMax. web width |
210 mm |
̤jLꭱn Max. Printing Area (mm) @1 color G2 colors T3 colors |4 colors By standard 2nd pass unit can do as many color quantity as the setting |
330(L) x 200(W) 159(L) x 200(W) 102(L) x 200(W) 73(L) x 200(W)
|
̤jSn (mm)Max. Hot stamping Area |
120(L) x 200(W) |
̤jҤn (mm)Max. Die-cut Area |
200 (L) x 200 (W) without printing 140(L) x 200(W) |
̤jtMax. speed |
12000 RPH , imp / hr |
ؤoMachine dimension |
L190 x W130 x H200 (cm) |
qMachine weight |
2100 KG(N.W.) , 2500 KG(G.W.) |
~nMeasurement |
8.5 CBM |
