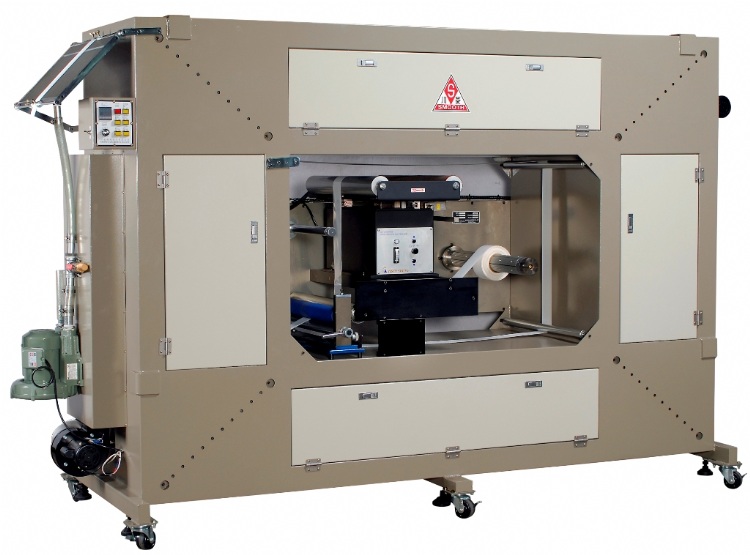

Circuits Tunnel Heat Dryer (Patent right reserved)

Enlarge

Circuits Tunnel Heat Dryer (Patent right reserved)

Model: 6HDTR-50M / 4HDTR-50M / HDTR-50M

Category: Packaging, Printing, Food & Pharmacy Machinery / Printing Presses / Parts for Printing Machinery

Online Inquiry

Characteristics

*7 ~ 50 meters drying distance (special order up to 75 meters and 100 meters also available),
0 ~ 150 Celsius drying temperature can be choose.
*Longer drying route by lower temperature against web shrinkage.
*Stable even drying temperature for all drying route to ensure 2nd pass best registration.
*Patent right reserved.
*Comparison please check 2nd attachment.
*etc

Details please check http://www.smoothmac.com/4hdtr_17m_hdtr_17m.htm

Specifications

Specification	6HDTR-50M / 4HDTR-50M / HDTR-50M
最大紙寬Max. web width	620 mm / 450mm / 340 mm
最大收料外徑 (mm) Max. web rewind outer dia.	ψ550 mm run around 1000 M inside 7 circuits run 50 M (Jumbo lengths e.g. 75 M, 100 M etc can be requested)
紙管內徑 Rewind shaft dia.	75 mm
最大速度Max. speed	連動式Connected on-line : As main machine同主機
最大溫度 Max. drying temperature	Choose from 0 ℃ to 150 ℃
機械尺寸Machine dimension	L185 x W140 x H195 (cm) / L185 x W110 x H195 (cm) / L185 x W100 x H195 (cm)
機械重量Machine weight	800 KG(N.W.) , 850 KG(G.W.) / 600 KG(N.W.) , 750 KG(G.W.) / 550 KG(N.W.) , 700 KG(G.W.) /
