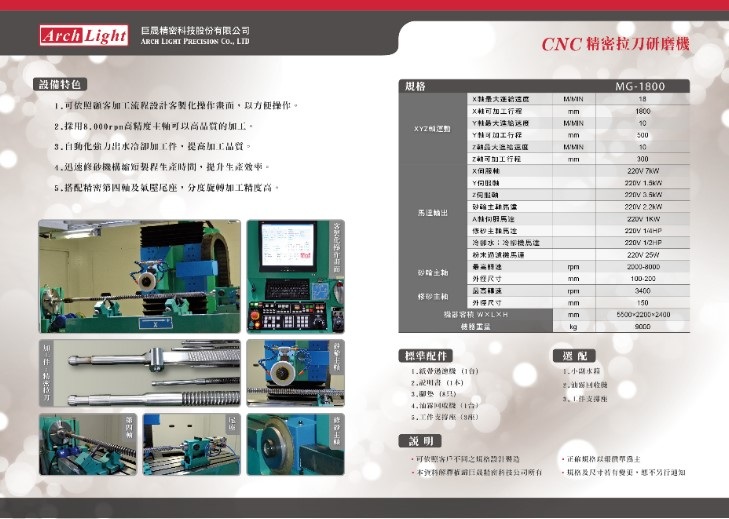

Broach Grove Grinder MG-1800
Model: MG-1800
Category: Machine Tools / Grinding Machines / Grinding & Finishing Machines
Characteristics
Equipment characteristics
1. The maximum diameter of the workpiece is 160; the maximum grinding groove length is 1800 ( broach groove grinder)
2. According to the customer's processing flow, the operation screen can be customized.
3. The high-precision spindle with 8,000rpm can get high-quality processing.
4. The rapid dressing mechanism shortens the production time of the process and improves production efficiency
5. Machine process in moving main column, with fast movement can save processing space.
Specifications
Conversational and customizable operation interface
Language : Traditional Chinese/Simplified Chinese/Japanese/English
Operation interface: touch dialogue
Control system: Syntec, Fanuc or Mitsubishi (optional)
Specification
Project | Model | ||
Types of grinding | 1. Grinding froove in round broach. 2. The maximum diameter of the workpiece is 160. |
||
XYZ axis movement | X-axis maximum feed speed | m/min | 18 |
X-axis travel(Spindle left and right) | mm | 1800 | |
Y-axis maximum feed speed | m/min | 10 | |
Y-axis travel(Spindle up and down) | mm | 500 | |
Z-axis maximum feed speed | m/min | 10 | |
Z-axis travel(Spindle forward and backward) | mm | 300 | |
Motor output | X-axis servo | kw | 7 |
Y-axis servo | kw | 1.5 | |
Z-axis servo | kw | 3.5 | |
Wheel spindle | kw | 2.2 | |
A-axis servo | kw | 1 | |
Dressing spindle | hp | 1/4 | |
Cooling machine | hp | 1/2 | |
Magnetic and paper filter machine | w | 25 | |
Oil mist collector | kw | 0.56 | |
Grinding Wheel | Maximum speed | mm | 100-200 |
Outer diameter | rpm | Ø150 | |
Dressing spindle | Maximum speed | mm | 3400 |
Outside Diameter | mm | Ø150*75(MAX)*Ø31.75 | |
Machine volume W x L x H | mm | 5500 * 2200* 2400 | |
Machine weight | kg | 7000 |
