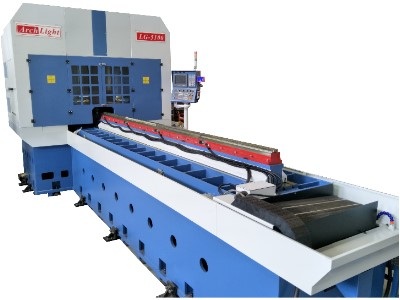

Grinding Linear Guide Way LG-5100
Model: LG-5100
Category: Machine Tools / Grinding Machines / Grinding & Finishing Machines
Characteristics
Equipment characteristics
1. Linear guideway rail type 9, 12, 15, 20, 25, 30, 35, 45, 55, 65
2. The machine with overall high-rigidity structure design, combined with the X-axis cylinder to transport forth and back up to 30M per minute, can obtain the best production efficiency and accuracy.
3. The machine with the gantry structure is matched with cast iron, which is reliable in quality and stable in durability!
4. The belt-type grinder spindle has high rigidity, high precision, low vibration, low cost. It is convenient installation and easy maintenance, and still hold stable and reliable when in high-speed rotating processing.
5. Use a laser autocollimator to confirm the axial accuracy to ensure the machining accuracy and have good workpiece quality after grinding.
6. The spindle of the grinding wheel and the CBN diamond dressing are equipped with an airtight sealing system so that moisture and chips will not enter the bearing, ensuring a long service life.
Specifications
Conversational and customizable operation interface
Language : Traditional Chinese/Simplified Chinese/Japanese/English
Operation interface: touch dialogue
Control system: Syntec, Fanuc or Mitsubishi (optional)
Specification
Item | Name | Unit | Size/Value |
Linear guideway rail | Type | 9,12,15,20,25,30,35,45,55,65 | |
Control System | Syntec 21MA-H six-axis controller or FANUC 0i-mf (optional) | ||
Processing part | Rail groove | ||
Machine capacity | Work table area(W*L) | mm | 150*4245 |
Magnetic chuck Area(W*L) | mm | 110*4200(Customize for Type) | |
Max table load(electro magnetic chuck is included) | kgs | 2800 | |
T slot(size*number*pitch) | mm | 18*3*100 | |
Distance from magnetic chuck to work table | mm | 125 | |
Distance from wheel bottom to work table(Y,V axis) | mm | Min.439~ Max.639 | |
Twin spindle power | Spindle motor(30 min/Continuous) | kw | 18.5/15 |
Spindle speed | rpm | 1200 ~ 2200 | |
Dimension of wheel(Od*W*B) | mm | Ø 510*50* Ø 203 (Ø20"*50*Ø8") | |
X axis longitudinal movement | Stroke | mm | 5000 |
Cylinder power(dia.);ball screw(opt.) | mm | Ø 65 or Yaskawa 7kw ,Fanuc α40i(Opt.) | |
Hydraulic pump/pole | kw | 5.5/6P | |
Hydraulic tank | L | 330 | |
Table speed | m/min | 30 | |
Linear guideway type | Japan(or Germany) Linear type | ||
W,Z axis cross movement forward/backward | Stroke | mm | 270 |
Ball screw+photo scale | mm | Ball screw(Japan) +Fagor ( Heidenhain Opt.) | |
Servo motor | kw | Yaskawa 1.8 or fanuc α4i(Opt.) | |
Reducer | Euro. high precision 1:5.2 | ||
Max speed | m/min | 2 | |
The least input increment | mm | 0.001 | |
Linear guideway type | Japan(or germany) linear type | ||
Y,V axis wheel head up/down | Stroke | mm | 200 |
Ball screw+photo scale | mm | Ball screw(Japan) +Fagor ( Heidenhain Opt.) | |
Servo motor | kw | Yaskawa 1.8 or Fanuc α4i(Opt.) | |
Reducer | Euro. high precision 1:5.2 | ||
Max speed | m/min | 2 | |
The least input increment | mm | 0.001 | |
Linear guideway type | Japan(or germany) linear type | ||
Grinding Wheel Dresser | Dimension of Diamond Dresser(OD*W*B) | mm | Ø120*65(max)*Ø52 |
Max Speed | rpm | 3500 | |
Motor with inverter | hp*p | 2*4 (siemens motor) | |
Reduction ratio | 1:1 | ||
Machine weight | Machine net weight(excluding optional coolant system etc.) | kgs | 29000 |
Packing weight (excluding accessories such as cutting fluid machine) | kgs | 33000 | |
Machine size (X*Y*Z) | Machine size (excluding accessories such as cutting fluid machine) | mm | 11500*3390*3285 |
Floor space | mm | 12500*3500*3300 | |
Machine size (excluding accessories such as cutting fluid machine) | mm | 12500*3500*3300 | |
Accessories description | Equipped with magnetic + paper filter system 500 wide | L | 2000*1250*300 (720L) |
With cutting fluid cooler | kw | 5.5 | |
With oil mist collector | kw | 0.56 |
